J2246-1206

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

2243-123 22 h 46 m 18.2319 s -12 ° 6 ´ 51.277 " 2.7 Jy quasar 0.630

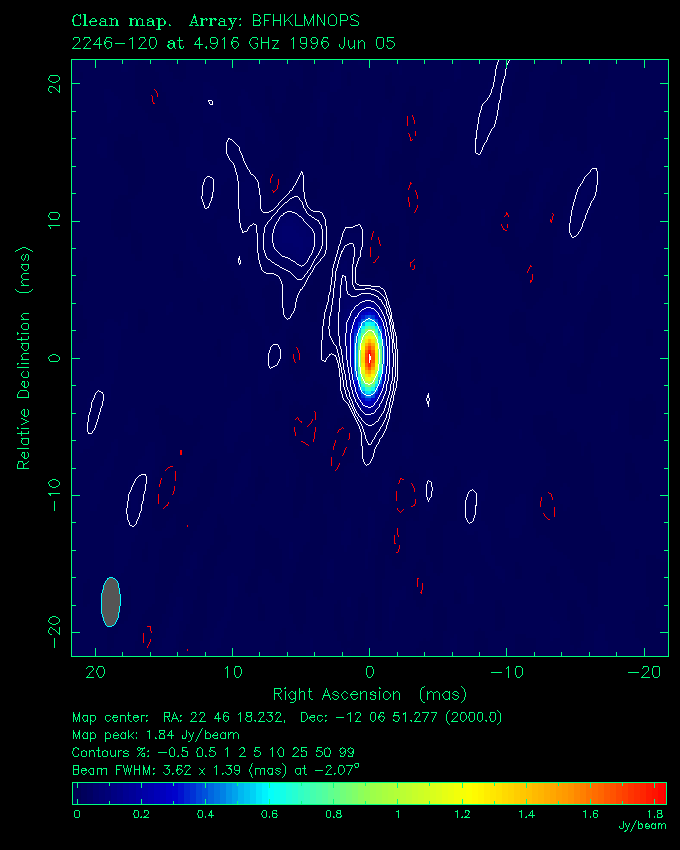

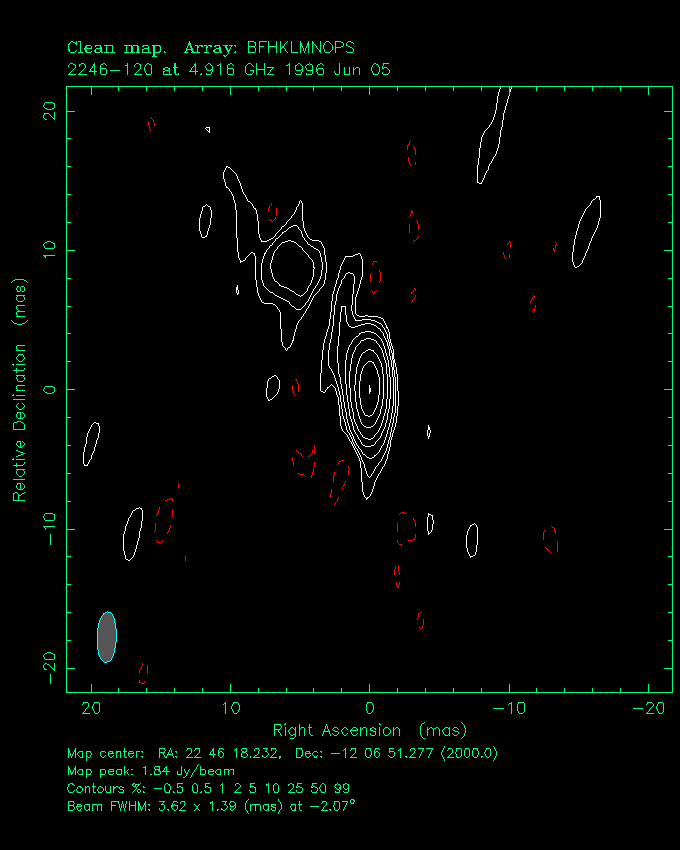

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

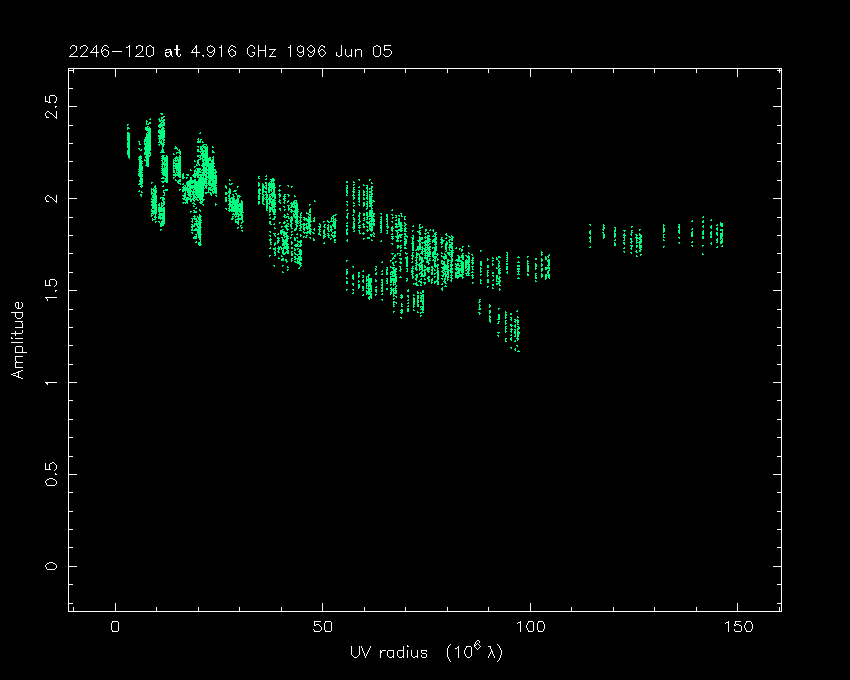

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

1.782 0.0 0.0 1.5 ± 0.1 < 0.2 175
0.424 0.5 1.2 4.1 ± 0.7 < 0.6 27
0.161 5.6 9.0 3.4 ± 0.4 < 1.6 74

Notes

A source-specific comment is given in the VLBApls paper.

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
