J2236+2828

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

2234+282 22 h 36 m 22.4708 s + 28 ° 28 ´ 57.413 " 1.6 Jy quasar 0.795

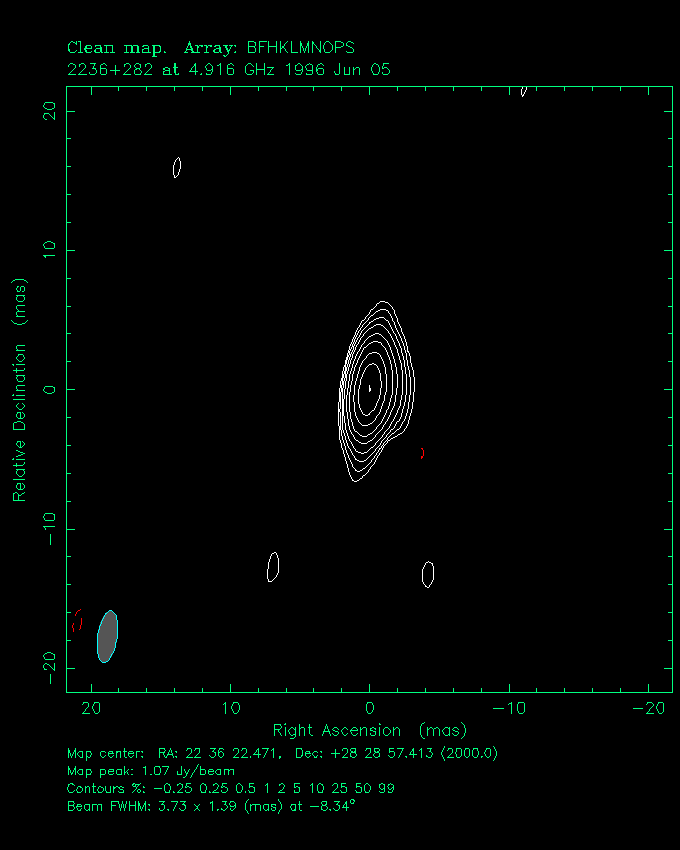

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

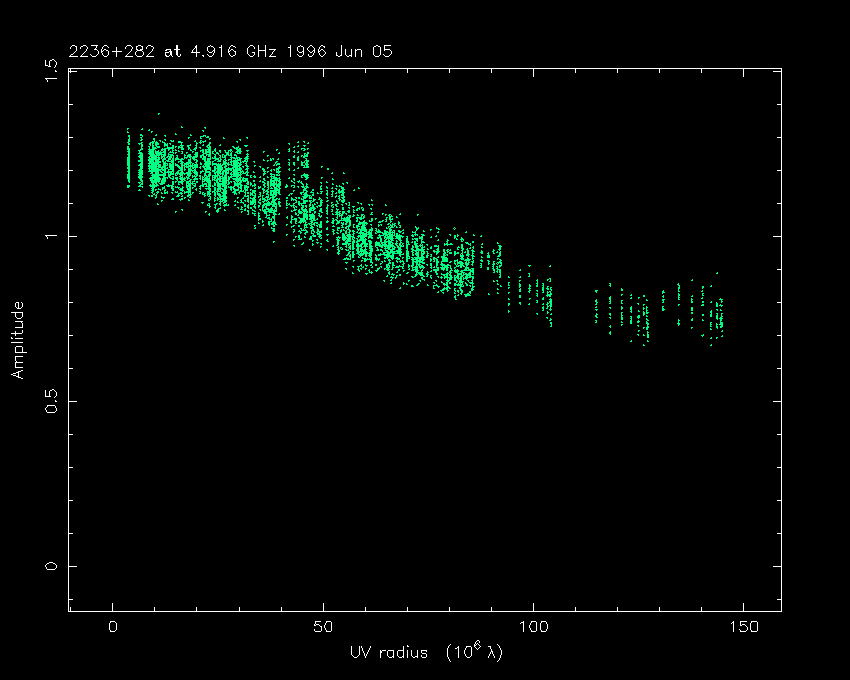

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

1.066 0.0 0.1 0.5 ± 0.3 < 0.3 48
0.155 -0.9 -0.1 1.1 ± 0.5 < 0.8 67

Other VLBI references

2.3 and/or 8.4 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
2234+282	22 h 36 m 22.4708 s	+ 28 ° 28 ´ 57.413 "	1.6 Jy	quasar	0.795

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
1.066	0.0	0.1	0.5 ± 0.3	< 0.3	48
0.155	-0.9	-0.1	1.1 ± 0.5	< 0.8	67
