J2229-0832

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

2227-088 22 h 29 m 40.0843 s -8 ° 32 ´ 54.434 " 2.4 Jy quasar 1.562

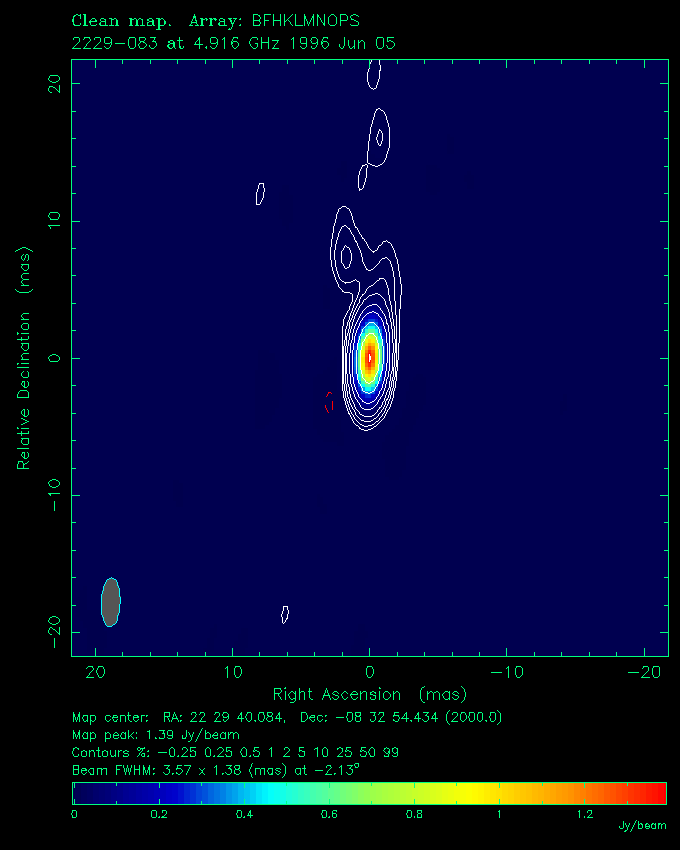

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

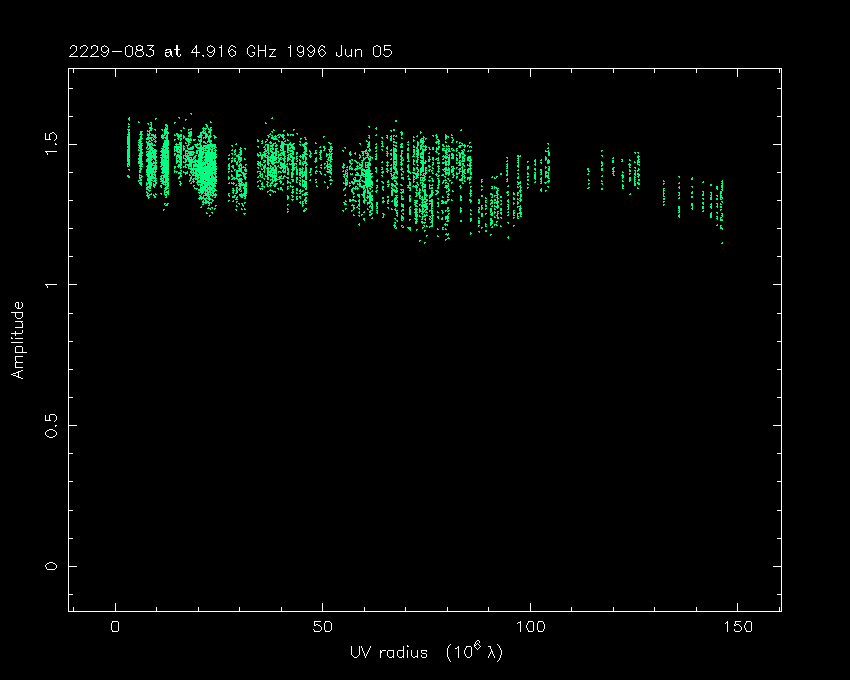

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

1.387 0.0 0.0 < 0.6 < 0.2 ...
0.065 -0.7 1.7 3.4 ± 0.7 < 0.8 16
0.034 0.3 7.3 3.7 2.0 ...

Other VLBI references

2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
