J2225-0457

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

3C 446 22 h 25 m 47.2592 s -4 ° 57 ´ 1.390 " 6.4 Jy quasar 1.404

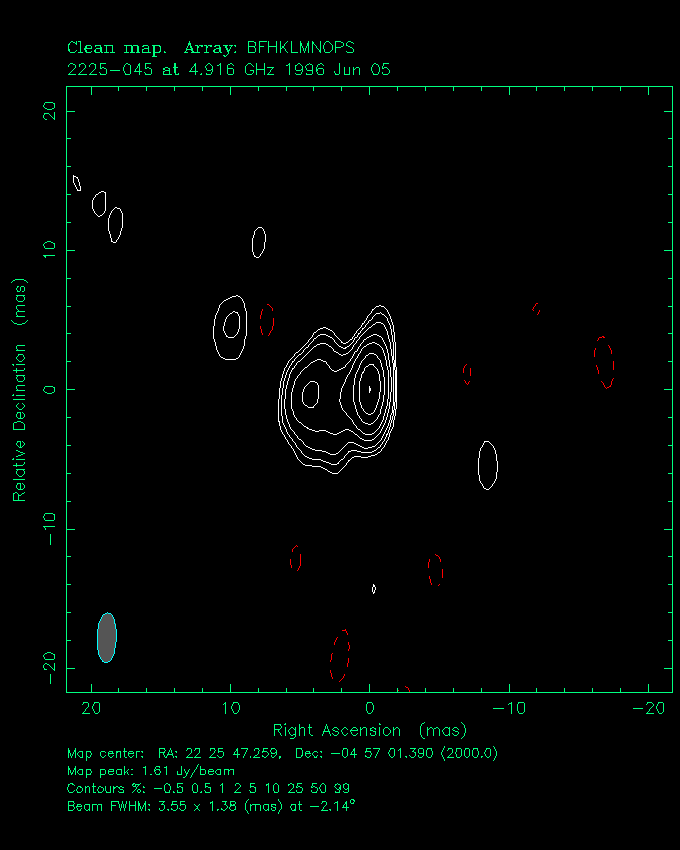

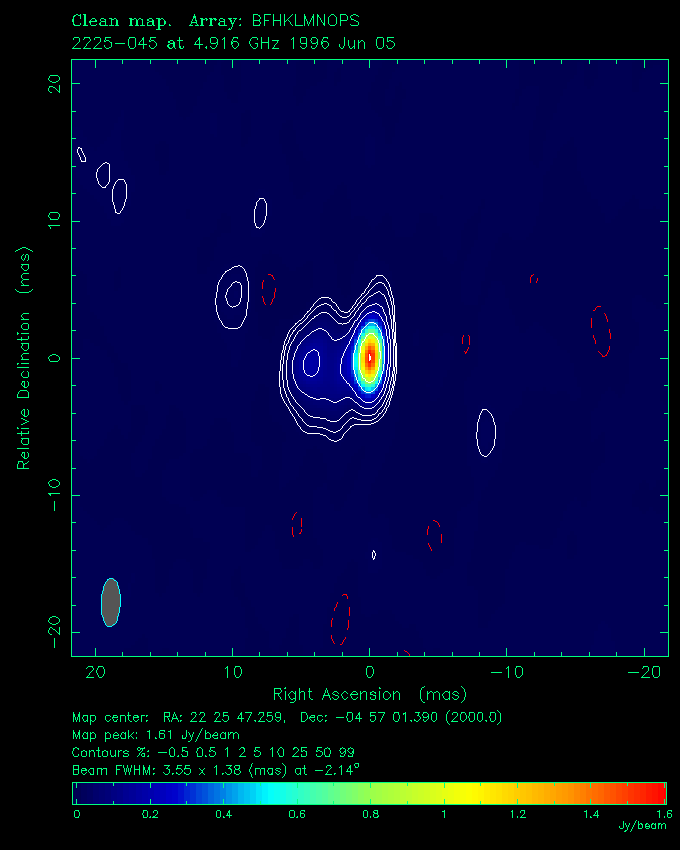

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

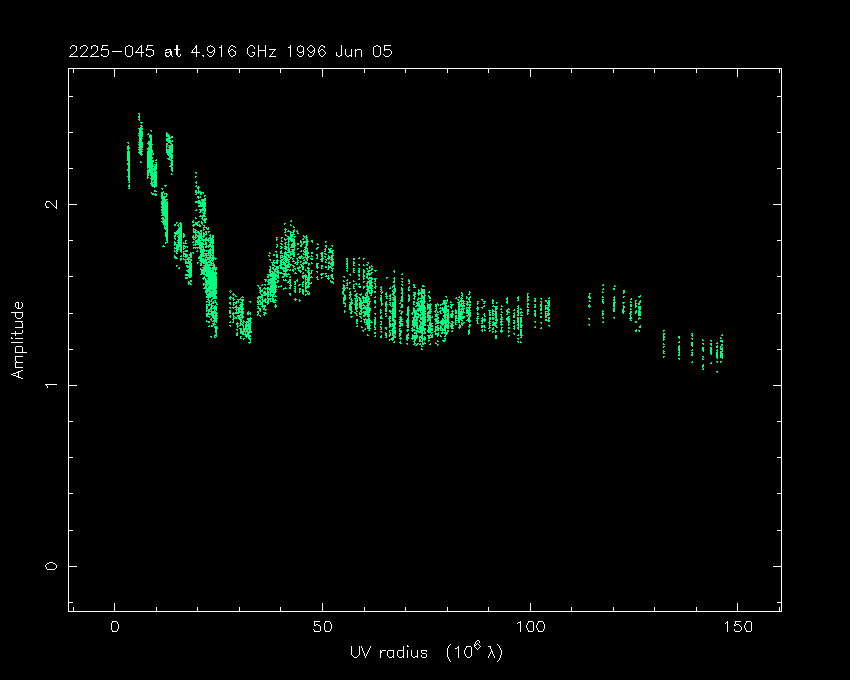

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

1.591 0.0 0.0 0.6 ± 0.2 0.4 ± 0.1 163
0.437 1.5 -0.6 4.2 ± 0.6 < 0.6 135
0.341 4.5 -0.6 2.6 ± 0.4 1.2 ± 0.5 136

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
