J2136+0041

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

2134+004 21 h 36 m 38.5863 s + 0 ° 41 ´ 54.214 " 12.4 Jy quasar 1.932

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

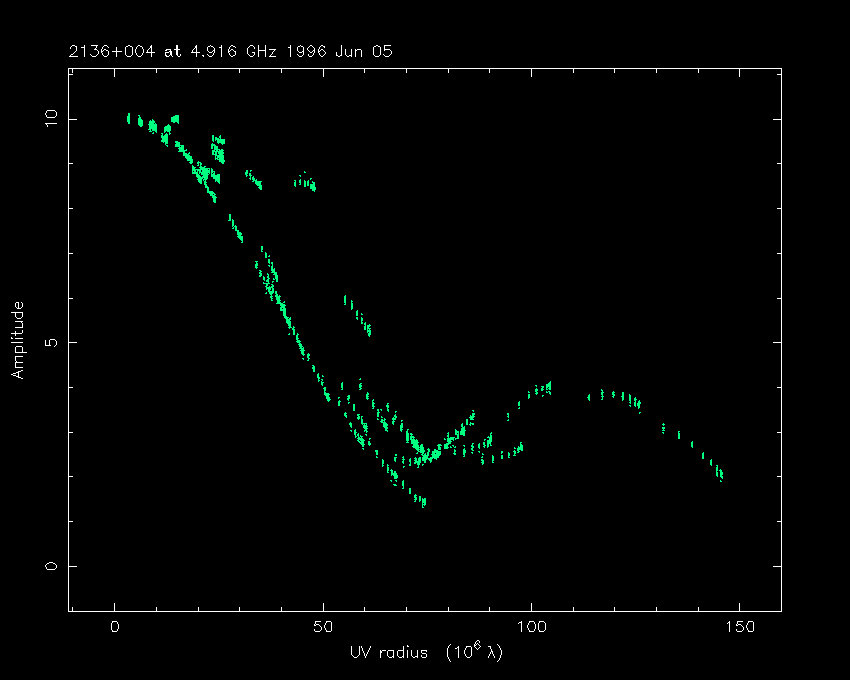

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

7.821 -0.1 0.0 1.2 ± 0.1 1.0 ± 0.1 54
1.982 1.6 0.2 < 0.5 < 0.2 ...
0.331 -1.7 -1.5 2.9 ± 0.5 < 0.7 164

Notes

A source-specific comment is given in the VLBApls paper.

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
2134+004	21 h 36 m 38.5863 s	+ 0 ° 41 ´ 54.214 "	12.4 Jy	quasar	1.932

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
7.821	-0.1	0.0	1.2 ± 0.1	1.0 ± 0.1	54
1.982	1.6	0.2	< 0.5	< 0.2	...
0.331	-1.7	-1.5	2.9 ± 0.5	< 0.7	164
