J2005+7752

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

2007+777 20 h 5 m 30.9984 s + 77 ° 52 ´ 43.247 " 1.7 Jy BL Lac 0.342

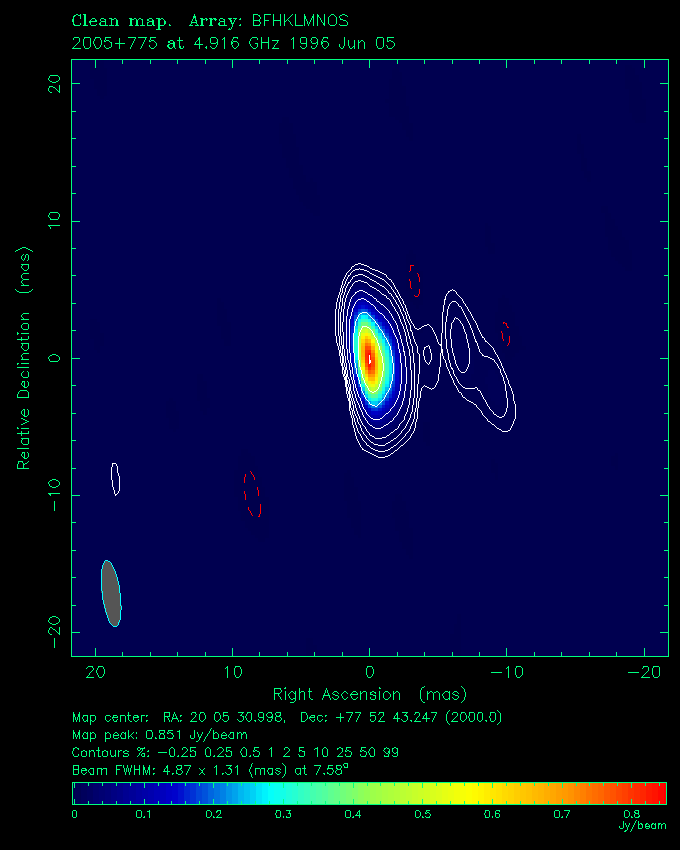

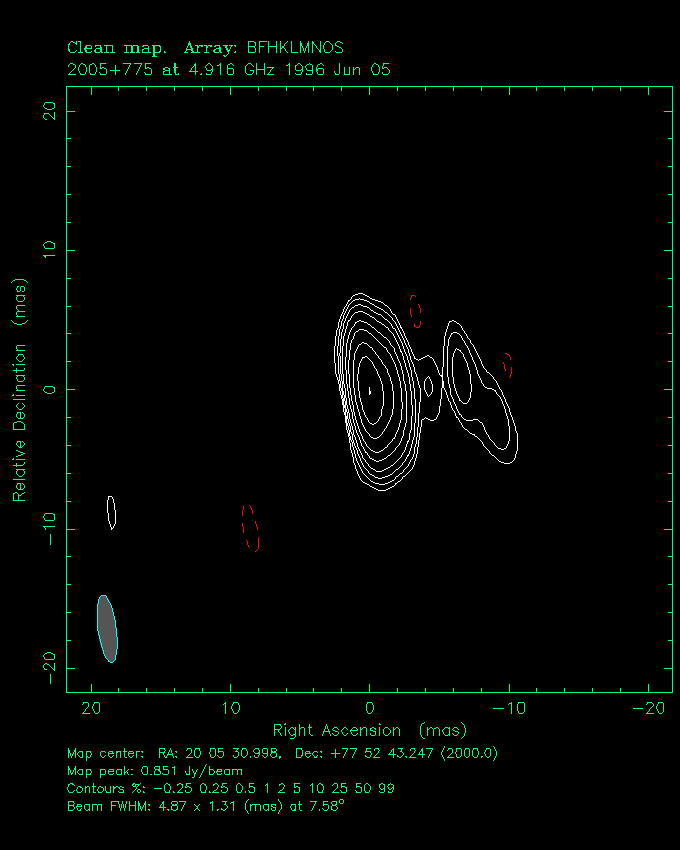

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

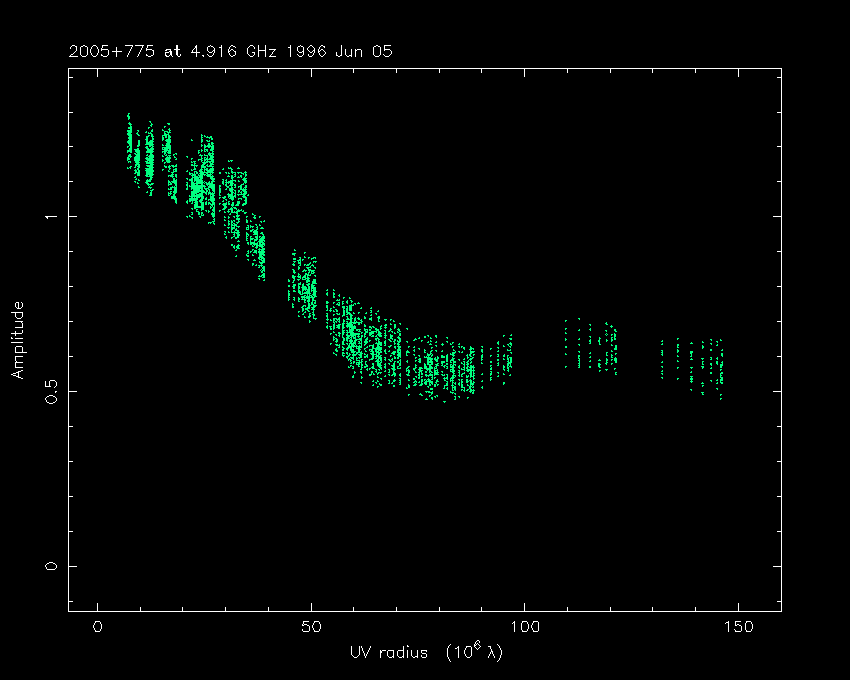

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.832 0.1 -0.1 0.5 ± 0.2 < 0.4 115
0.350 -1.1 -0.2 1.1 ± 0.2 < 0.6 105
0.034 -5.9 0.1 5.4 2.0 80

Other VLBI references

5 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
