J1949-1957

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

1946-200 19 h 49 m 53.420 s * -19 ° 57 ´ 13.32 " 1.3 Jy empty field ...

* = the position has been determined to an accuracy of 10 mas from the VLBApls data

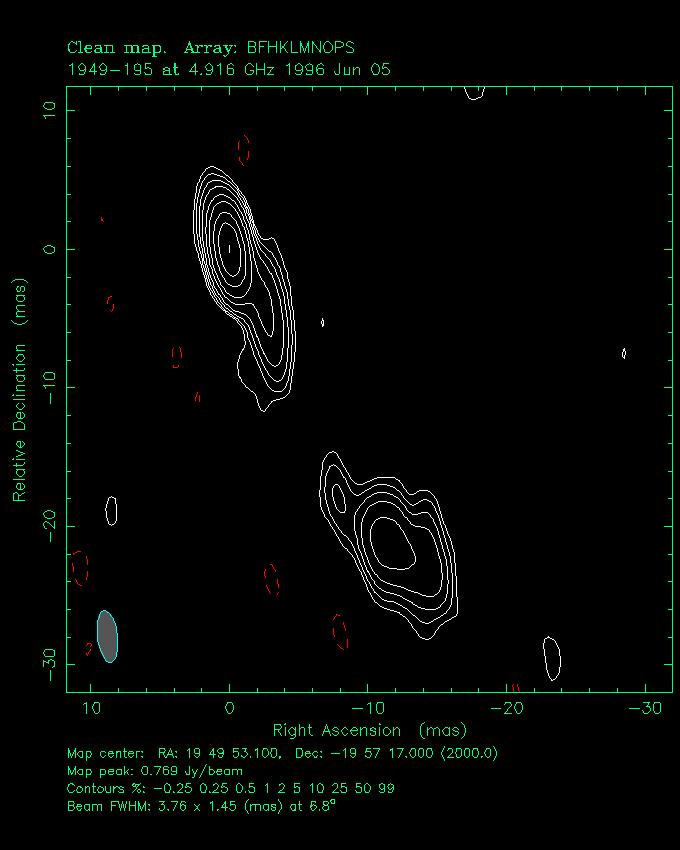

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.820 0.0 0.0 0.9 ± 0.3 < 0.2 31
0.200 -12.0 -21.5 4.6 ± 0.5 < 0.8 66
0.100 -2.5 -4.2 3.4 ± 0.7 < 0.4 6

Other VLBI references

2.3 and/or 8.4 GHz: VLBI images are available in the VLBA Calibrators Database

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
