J1832+2833

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

1830+285 18 h 32 m 50.1856 s + 28 ° 33 ´ 35.955 " 1.1 Jy quasar 0.594

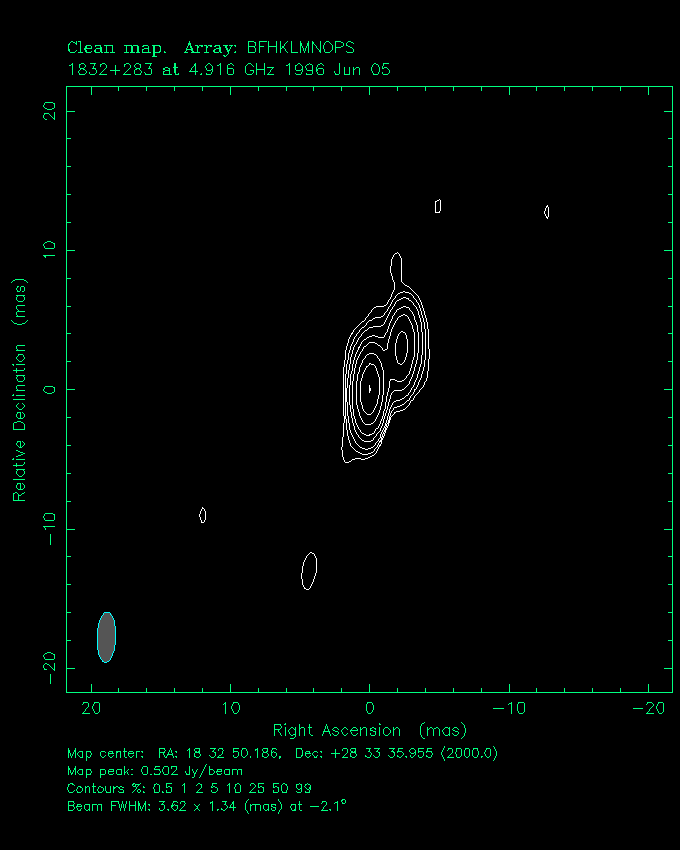

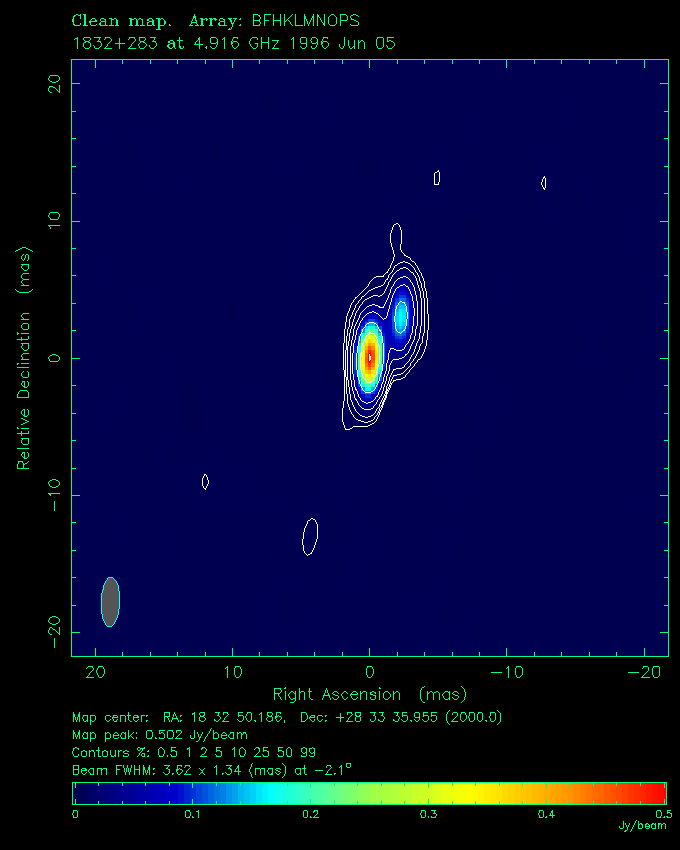

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.517 0.0 0.0 < 0.5 < 0.6 ...
0.181 -2.3 2.9 < 0.7 < 0.6 ...

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
1830+285	18 h 32 m 50.1856 s	+ 28 ° 33 ´ 35.955 "	1.1 Jy	quasar	0.594

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
0.517	0.0	0.0	< 0.5	< 0.6	...
0.181	-2.3	2.9	< 0.7	< 0.6	...
