J1743-0350

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

1741-038 17 h 43 m 58.8561 s -3 ° 50 ´ 4.616 " 2.4 Jy quasar 1.057

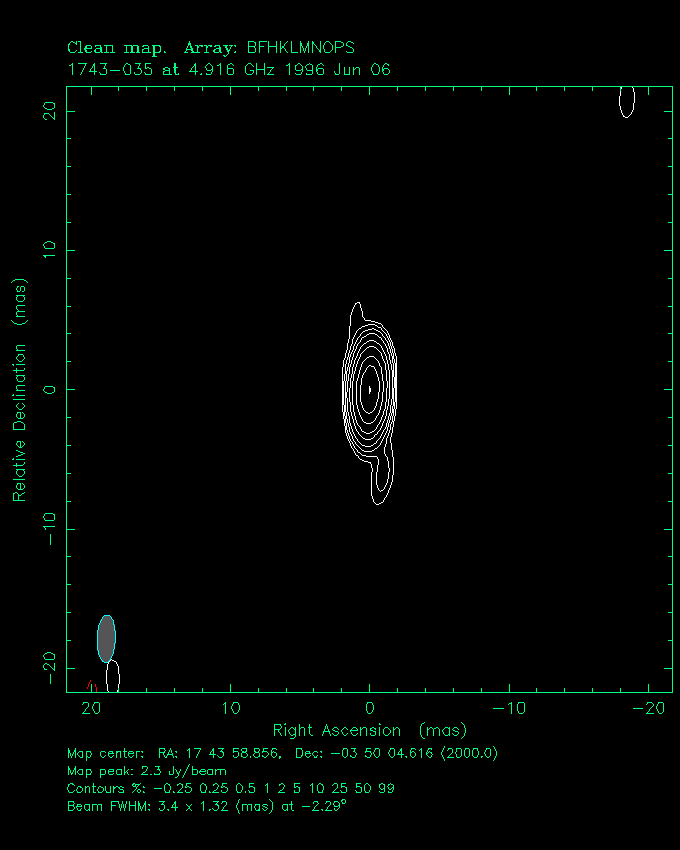

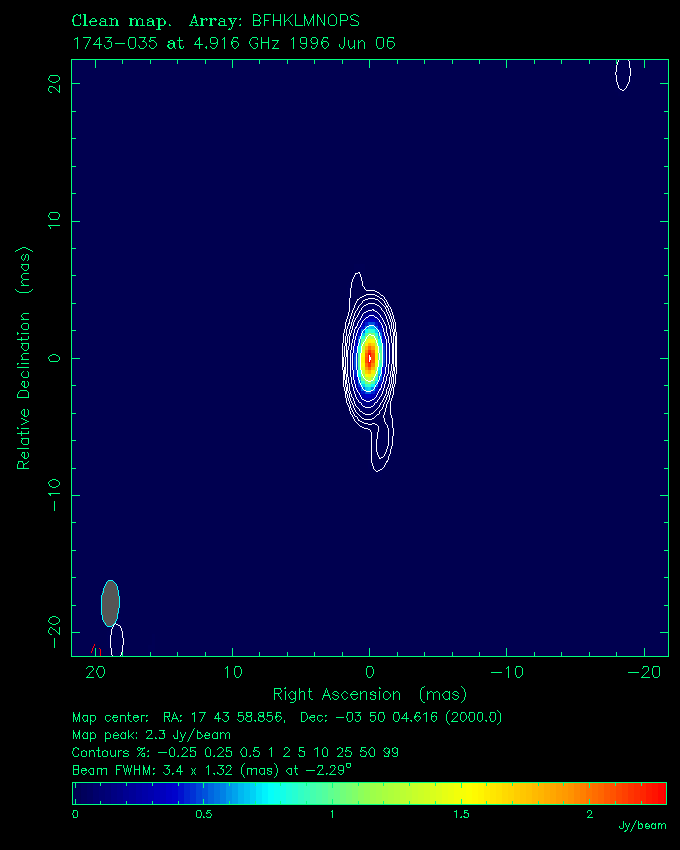

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

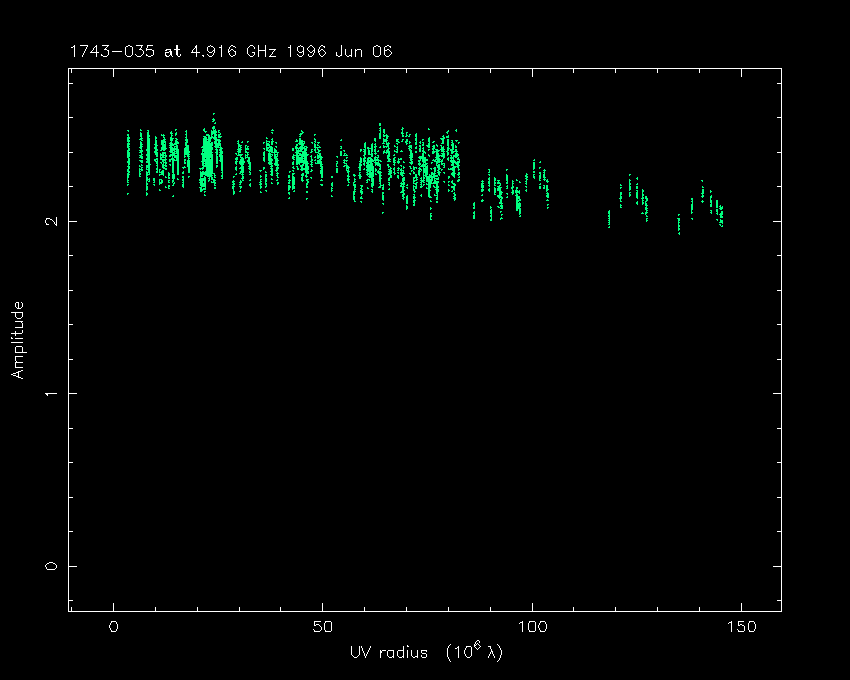

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

2.378 0.0 0.0 0.4 ± 0.2 < 0.2 139

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
1741-038	17 h 43 m 58.8561 s	-3 ° 50 ´ 4.616 "	2.4 Jy	quasar	1.057

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
2.378	0.0	0.0	0.4 ± 0.2	< 0.2	139
