J1658+4737
J1658+4737
| other name | right ascension (J2000)
| declination (J2000) |
5-GHz total flux density |
optical ID | redshift |
| 1656+477 |
16 h 58 m
2.7795
s |
+ 47 ° 37 ´
49.231
" |
1.4 Jy |
quasar |
1.622 |

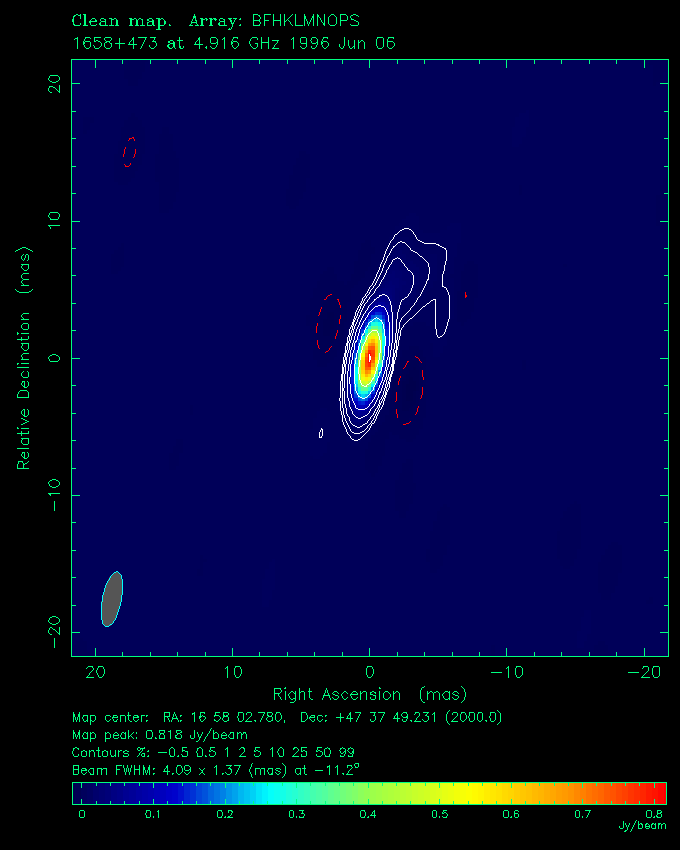

VLBApls image at 5 GHz
color gif
|

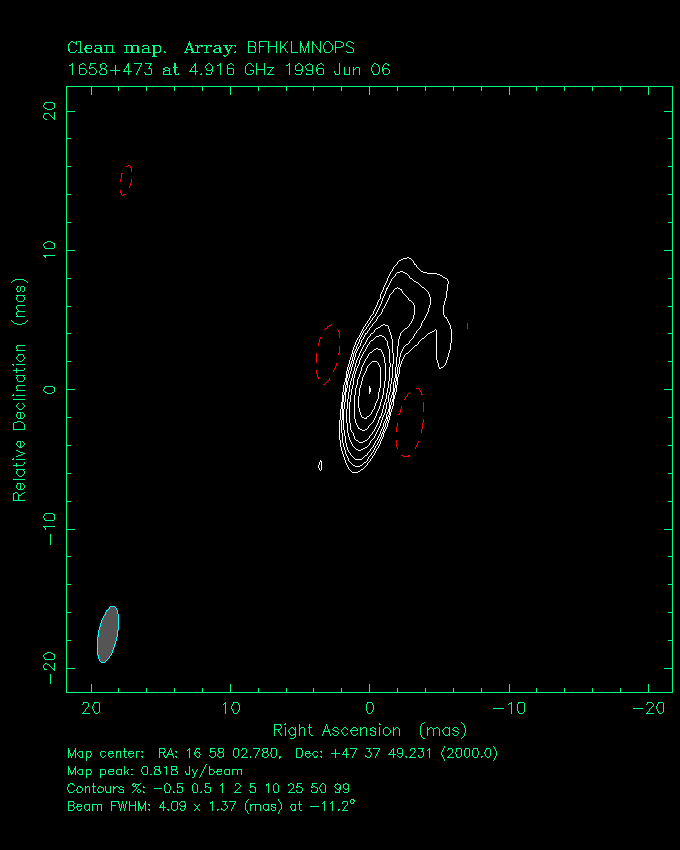

contour gif
|
contour PostScript

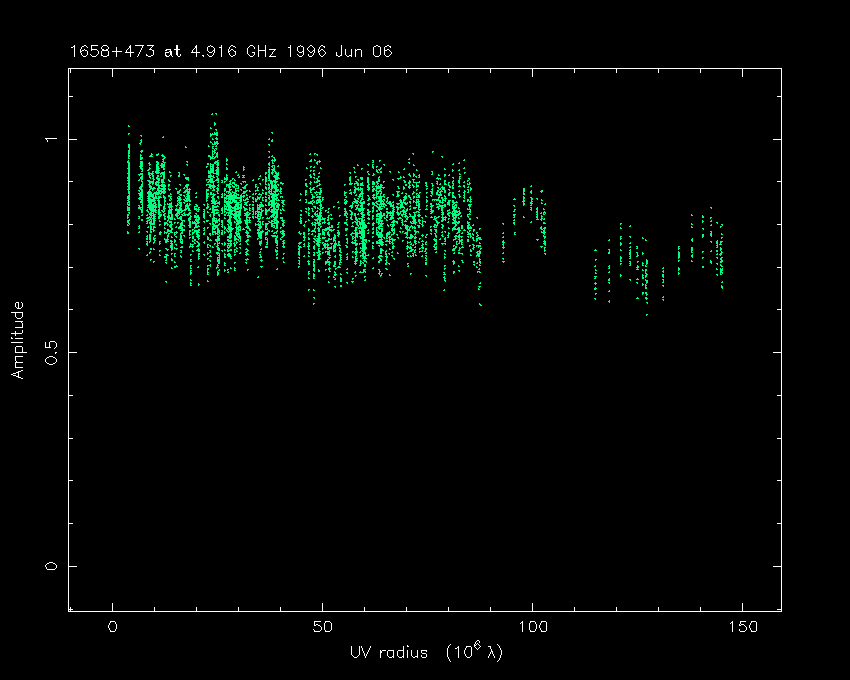

Correlated flux density (Jy) vs. projected baseline length plot
gif |
PostScript
Gaussian source model component parameters
| flux density (Jy) |
EW position (mas) |
NS position (mas) |
major axis (mas) |
minor axis (mas) |
position angle (°) |
| 0.858 |
0.0 |
0.0 |
1.0
±
0.3
|
<
0.2
|
172
|
| 0.048 |
-2.3 |
5.4 |
2.0
|
2.0
|
...
|
Other VLBI references
- 5 GHz: VLBI image is published in the
Caltech-Jodrell Bank Flat Spectrum Survey
(CJF, Taylor et al. 1996, ApJS 107, 37)
- 1.6 GHz: VLBI image is published in the
Caltech-Jodrell Bank Flat Spectrum Survey
(CJF, Taylor et al. 1996, ApJS 107, 37)
- 2.3 and/or 8.4 GHz: VLBI
images are available in the
USNO Radio Reference Frame Image Database
(RRFID, Fey & Charlot 2000, ApJS 128, 17)
- 15 GHz: multiple epoch VLBI
images are available in the
VLBA 2-cm survey
(Kellermann et al. 1998, AJ 115, 1295)
VLBApls reference: Fomalont et al. (2000),
ApJS, in press (November 2000)
