J1642+3948

J1642+3948

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
3C 345 16 h 42 m 58.8099 s + 39 ° 48 ´ 36.993 " 8.4 Jy quasar 0.594

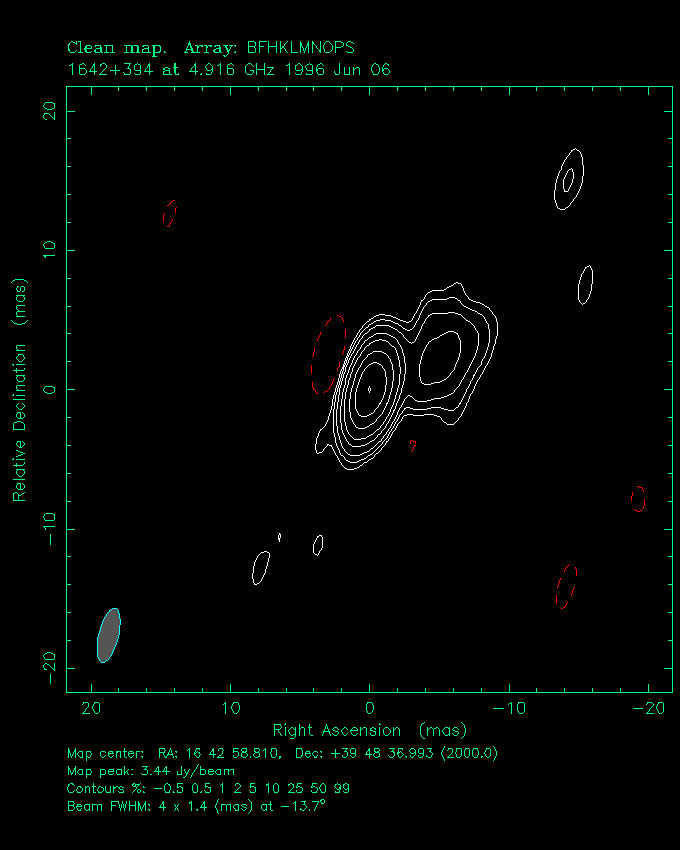

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

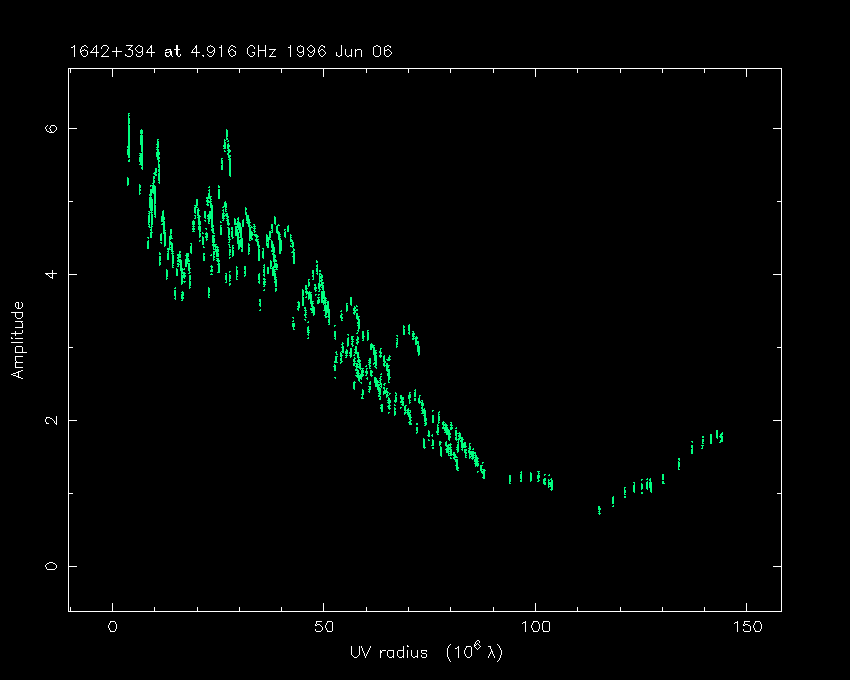

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
1.836 0.4 0.0 < 0.5 < 0.2 ...
3.009 -0.5 0.0 1.1 ± 0.1 < 0.3 92
0.800 -5.1 2.3 3.7 ± 0.2 2.0 ± 0.3 124

Other VLBI references
