J1540+1447

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

1538+149 15 h 40 m 49.4915 s + 14 ° 47 ´ 45.884 " 1.2 Jy quasar 0.605

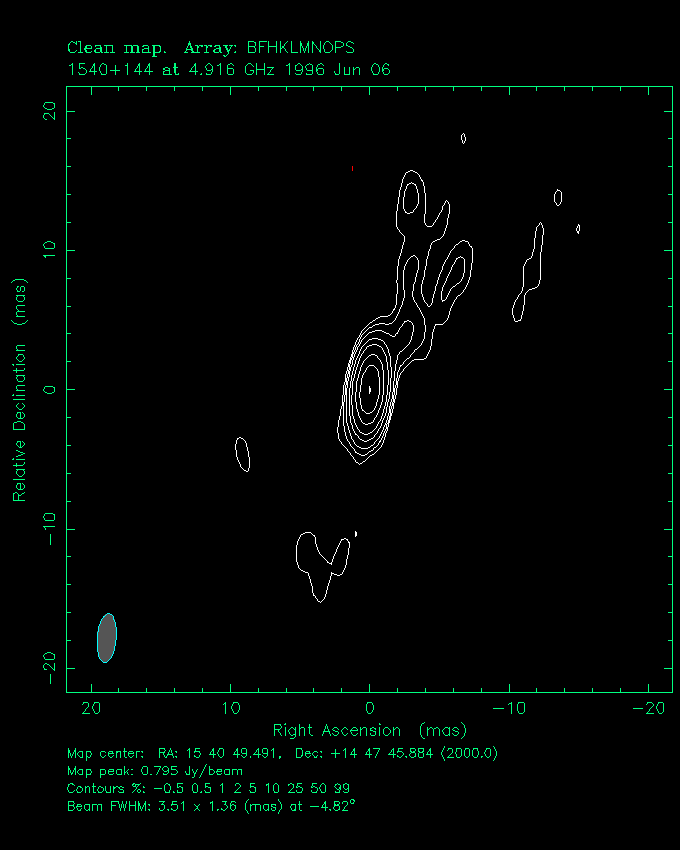

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.806 0.0 0.0 < 0.5 < 0.4 ...
0.046 -2.0 3.1 6.5 2.0 141
0.051 -5.5 8.8 < 6.2 < 6.2 141

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
1538+149	15 h 40 m 49.4915 s	+ 14 ° 47 ´ 45.884 "	1.2 Jy	quasar	0.605

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
0.806	0.0	0.0	< 0.5	< 0.4	...
0.046	-2.0	3.1	6.5	2.0	141
0.051	-5.5	8.8	< 6.2	< 6.2	141
