J1517-2422

J1517-2422

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
1514-241 15 h 17 m 41.8131 s -24 ° 22 ´ 19.475 " 2.2 Jy BL Lac 0.048

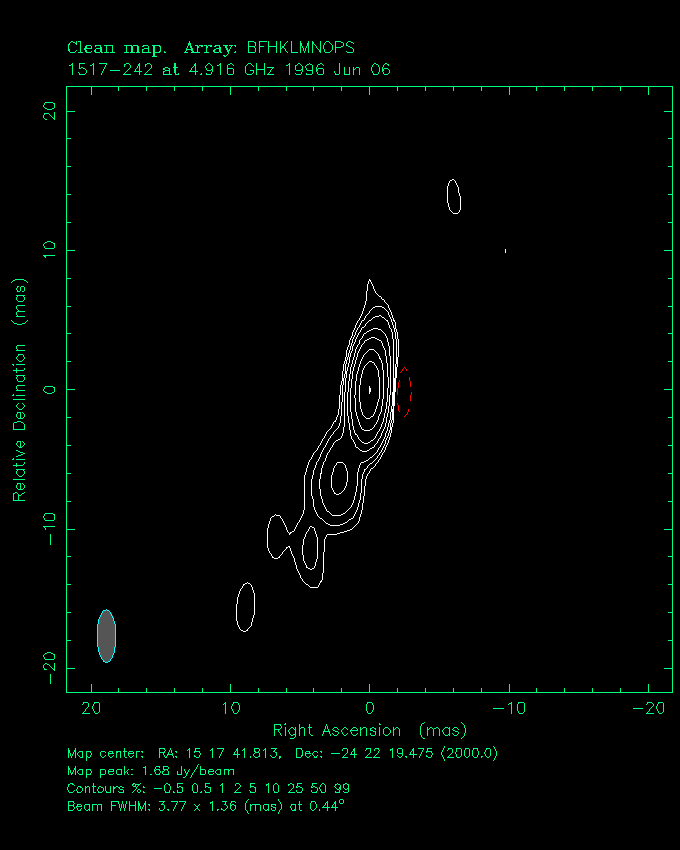

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

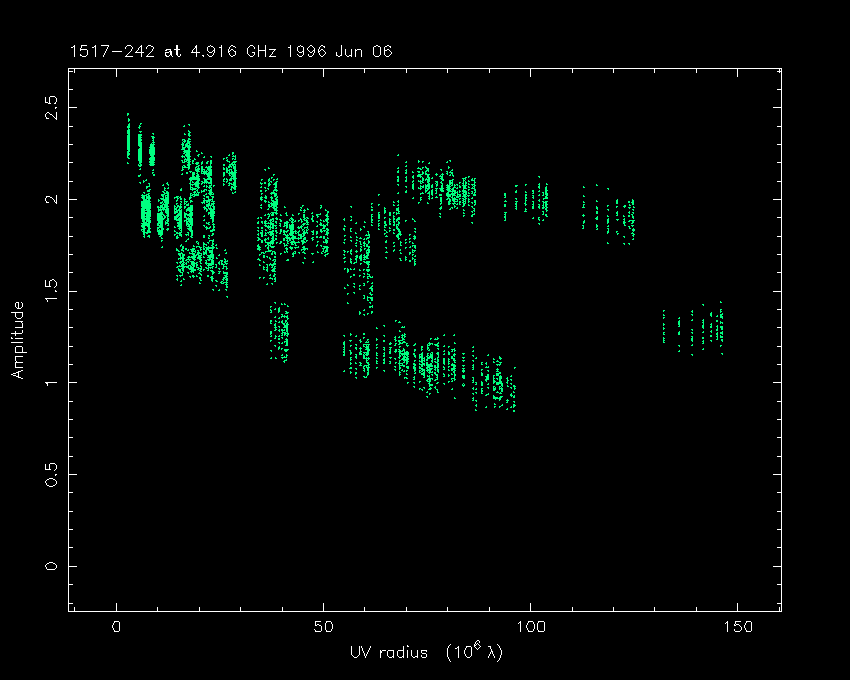

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
1.948 0.0 0.0 1.6 ± 0.1 < 0.2 162
0.253 2.1 -6.3 2.2 ± 0.3 < 1.3 109
0.077 5.7 -10.2 < 6.0 < 0.0 109

Other VLBI references
