J1506+3730

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

1504+377 15 h 6 m 9.5299 s + 37 ° 30 ´ 51.132 " 1.0 Jy galaxy 0.674

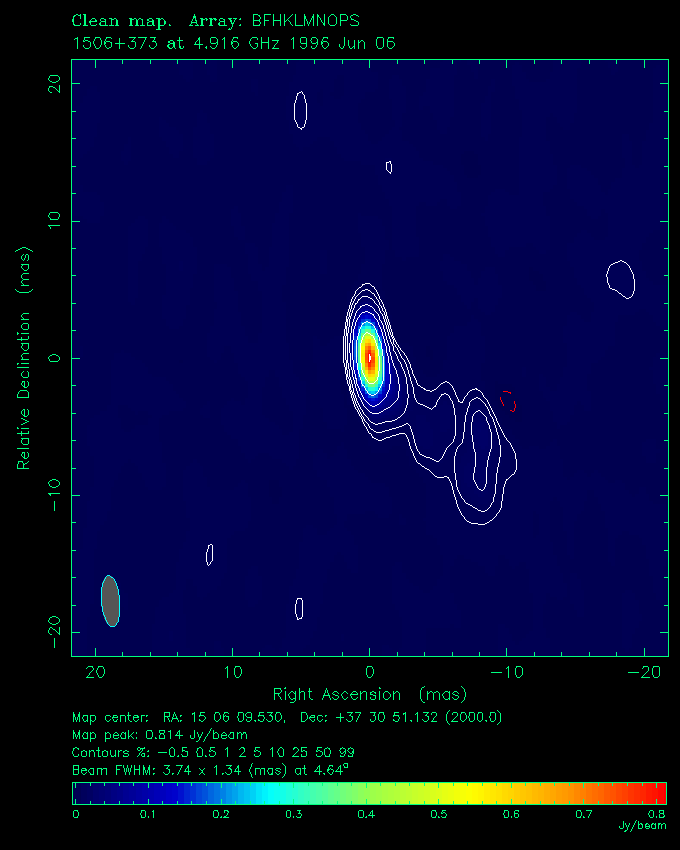

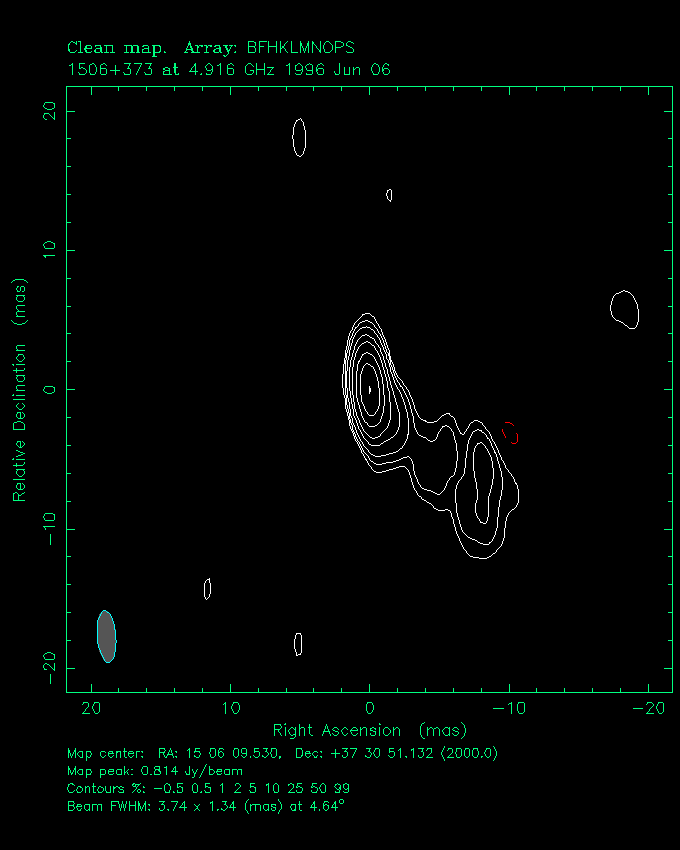

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

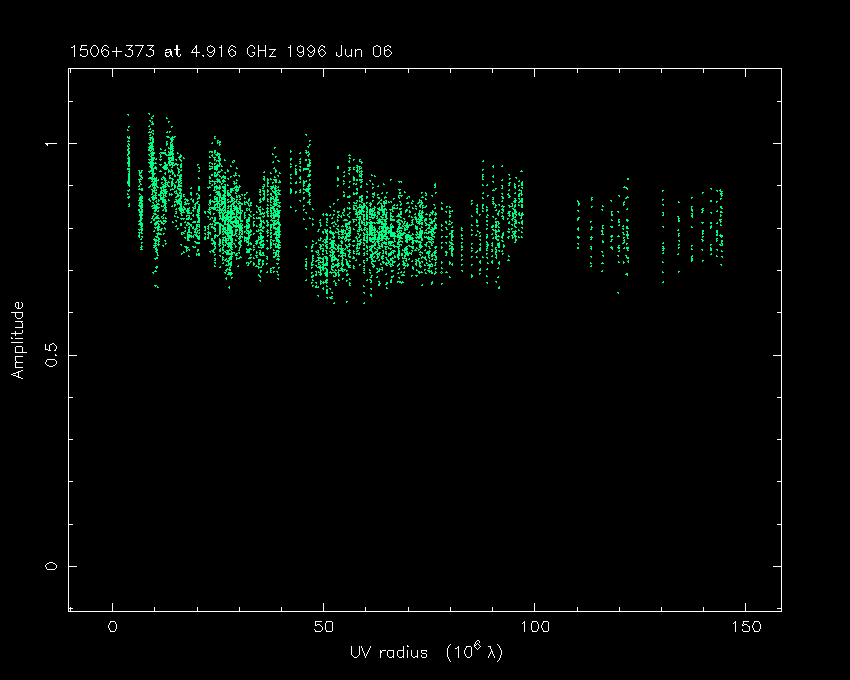

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.807 0.0 0.0 < 0.4 < 0.5 ...
0.082 -1.5 -1.7 2.0 ± 0.5 < 1.3 53
0.104 -7.2 -6.7 6.5 ± 0.8 3.8 ± 0.6 41

Other VLBI references

5 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
1.6 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
