J1415+1320

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

1413+135 14 h 15 m 58.8174 s + 13 ° 20 ´ 23.713 " 1.2 Jy BL Lac 0.247

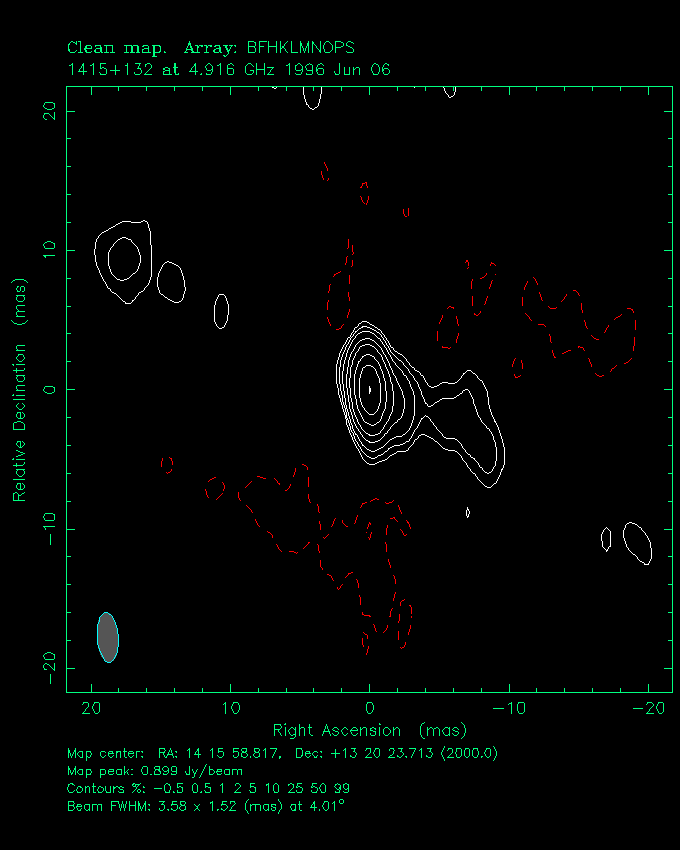

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.866 0.0 0.0 < 0.4 < 0.4 ...
0.110 -1.5 -0.7 2.4 ± 0.4 < 0.7 66
0.054 -6.9 -2.9 < 5.3 < 0.0 66
0.034 17.2 9.5 3.7 2.0 ...

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
1413+135	14 h 15 m 58.8174 s	+ 13 ° 20 ´ 23.713 "	1.2 Jy	BL Lac	0.247

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
0.866	0.0	0.0	< 0.4	< 0.4	...
0.110	-1.5	-0.7	2.4 ± 0.4	< 0.7	66
0.054	-6.9	-2.9	< 5.3	< 0.0	66
0.034	17.2	9.5	3.7	2.0	...
