J1331+3030

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

3C 286 13 h 31 m 8.2881 s + 30 ° 30 ´ 32.959 " 6.3 Jy quasar 0.846

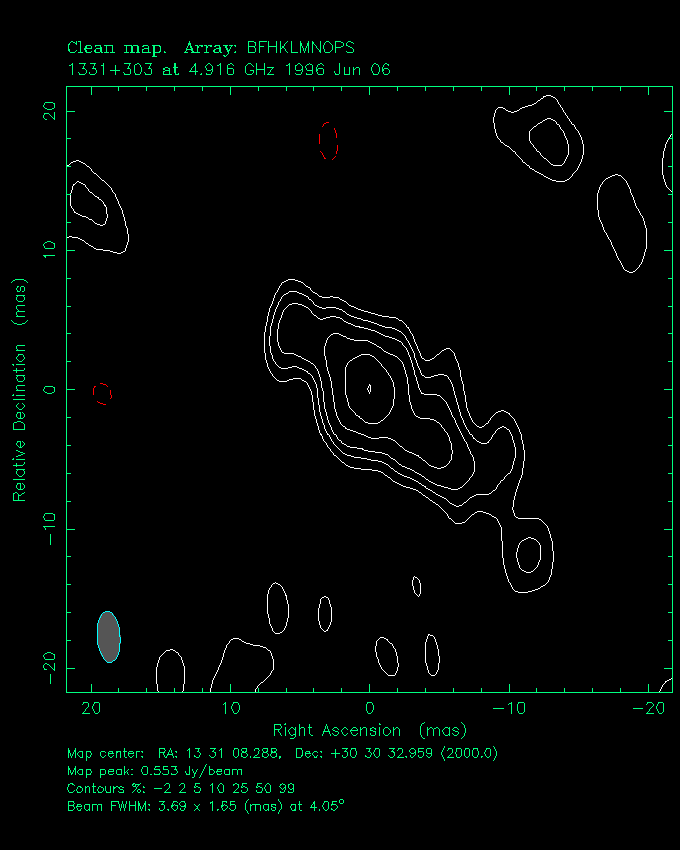

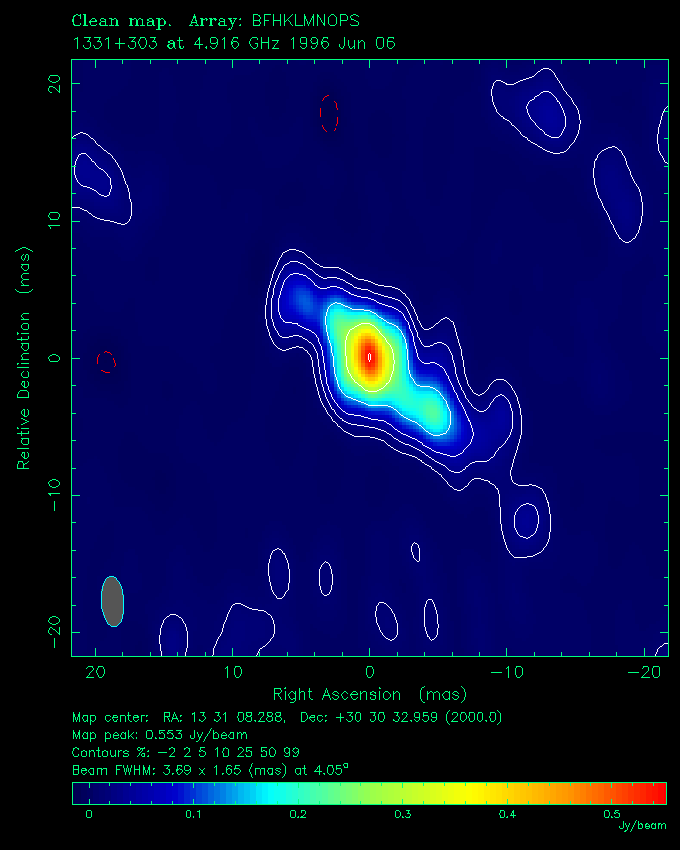

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

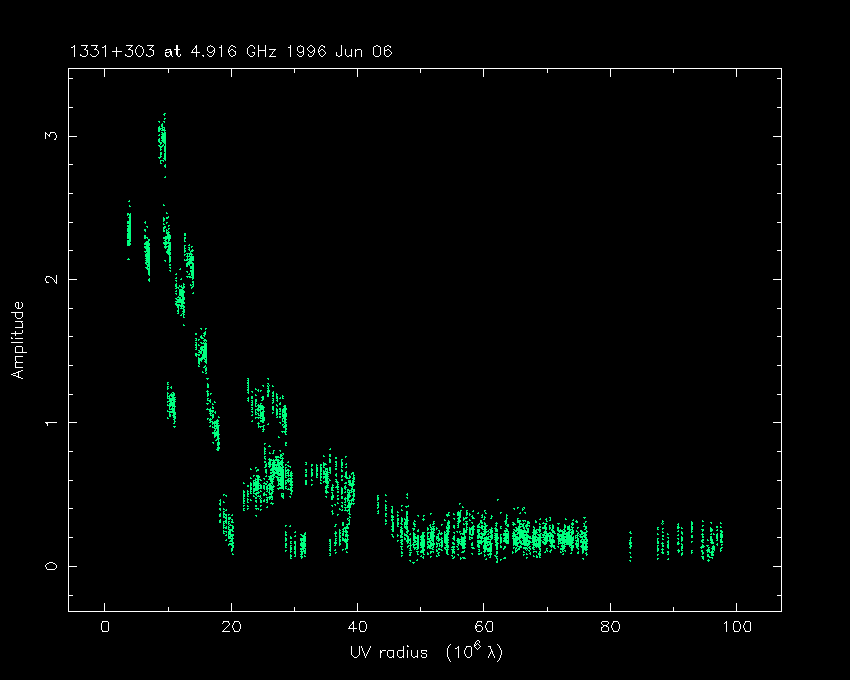

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

1.723 0.2 0.2 4.6 ± 0.2 3.6 ± 0.1 33
0.978 -4.7 -4.0 7.4 ± 0.8 3.7 ± 0.6 61
0.192 5.5 3.5 2.6 ± 0.4 < 1.5 108

Other VLBI references

2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
