J1309+1154

J1309+1154

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
1307+121 13 h 9 m 33.9324 s + 11 ° 54 ´ 24.552 " 1.3 Jy BL Lac ...

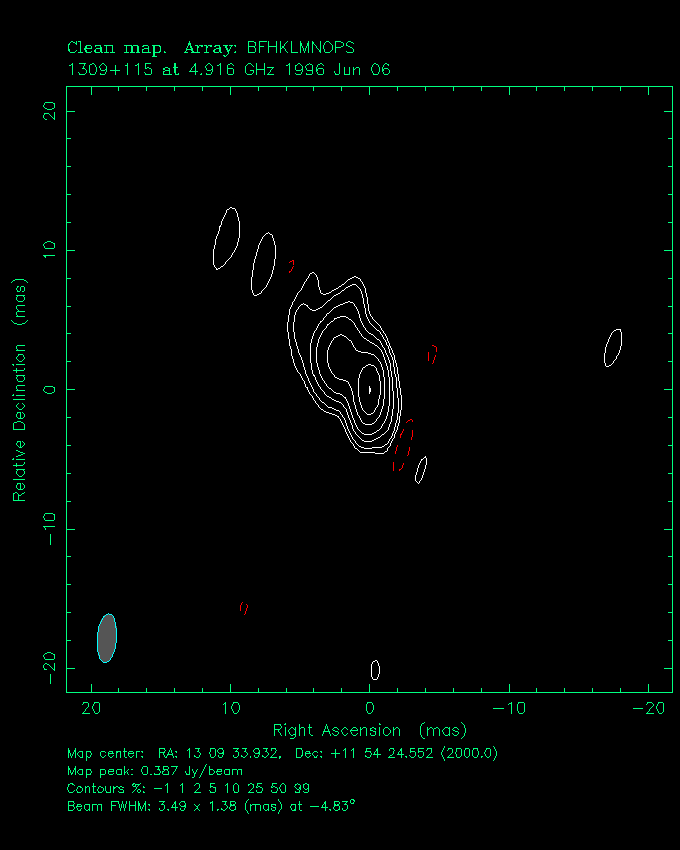

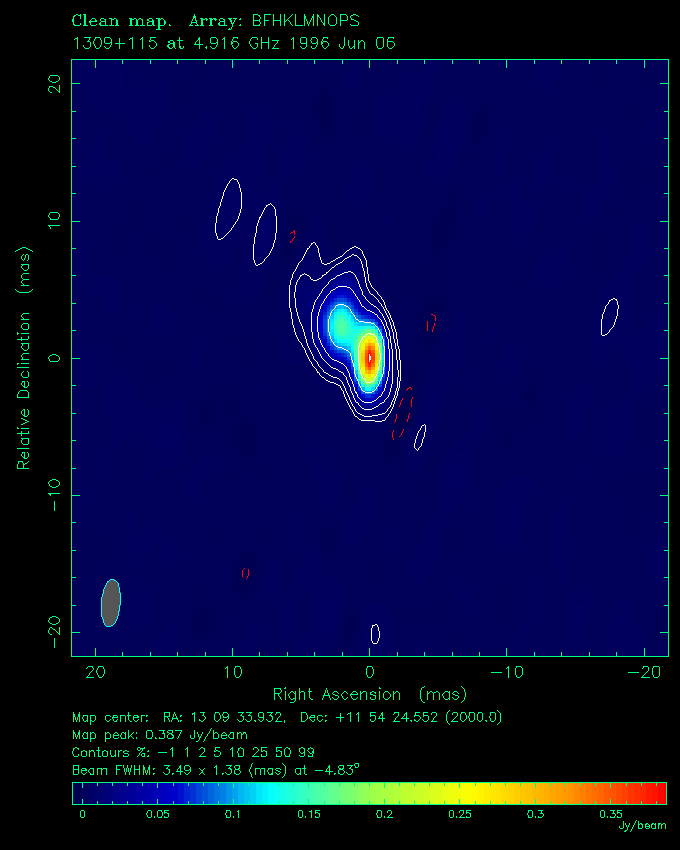

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

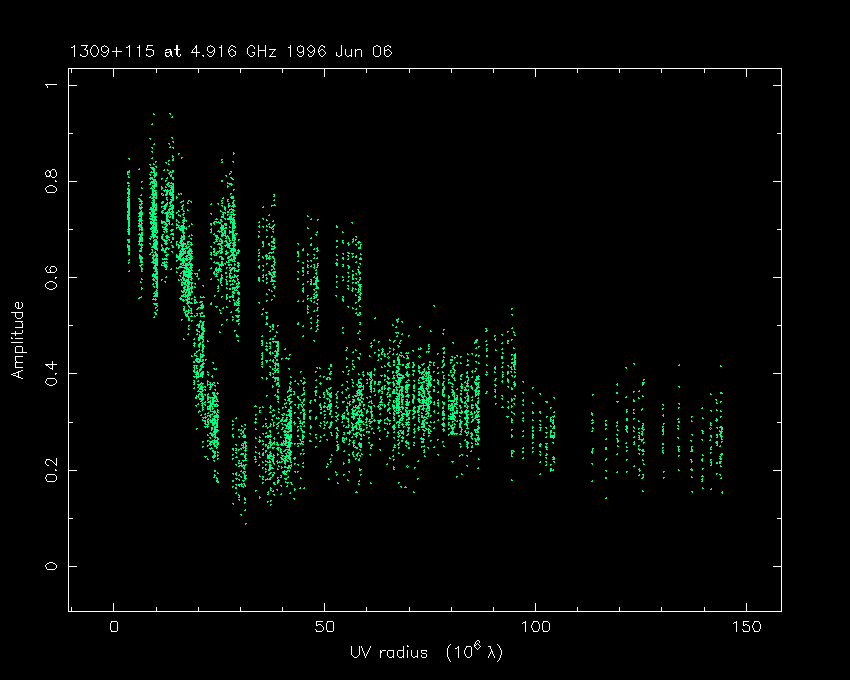

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
0.273 -0.1 0.0 < 1.3 < 0.5 ...
0.261 2.2 2.5 1.8 ± 0.2 < 0.9 77
0.193 0.3 0.2 2.3 ± 0.6 < 1.2 42
0.019 5.9 7.7 6.4 2.0 41

Other VLBI references
