J0909+0121

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0906+015 9 h 9 m 10.0916 s + 1 ° 21 ´ 35.618 " 1.0 Jy quasar 1.018

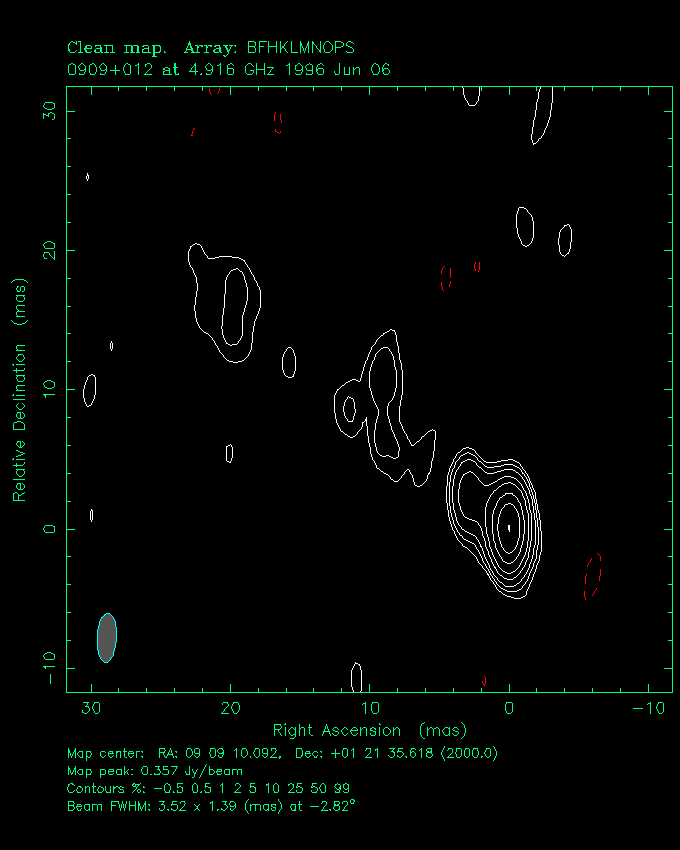

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

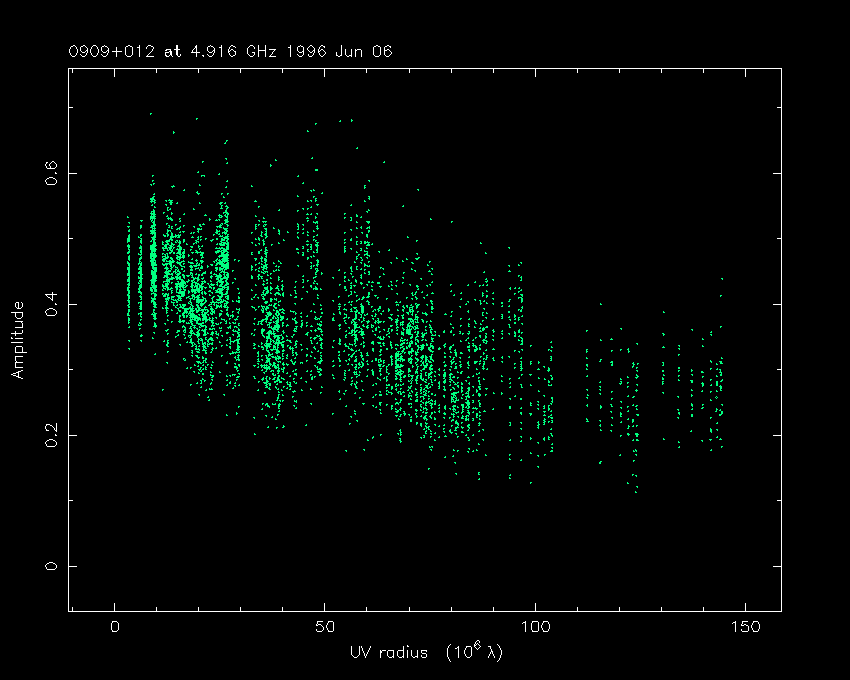

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.359 0.0 0.0 < 0.7 < 0.7 ...
0.111 1.4 1.3 5.4 ± 0.7 < 1.2 45
0.026 9.2 7.5 7.6 2.8 27
0.023 19.7 15.6 5.7 3.3 ...

Other VLBI references

2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
0906+015	9 h 9 m 10.0916 s	+ 1 ° 21 ´ 35.618 "	1.0 Jy	quasar	1.018

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
0.359	0.0	0.0	< 0.7	< 0.7	...
0.111	1.4	1.3	5.4 ± 0.7	< 1.2	45
0.026	9.2	7.5	7.6	2.8	27
0.023	19.7	15.6	5.7	3.3	...
