J0832+4913

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0828+493 8 h 32 m 23.2167 s + 49 ° 13 ´ 21.038 " 0.4 Jy BL Lac 0.548

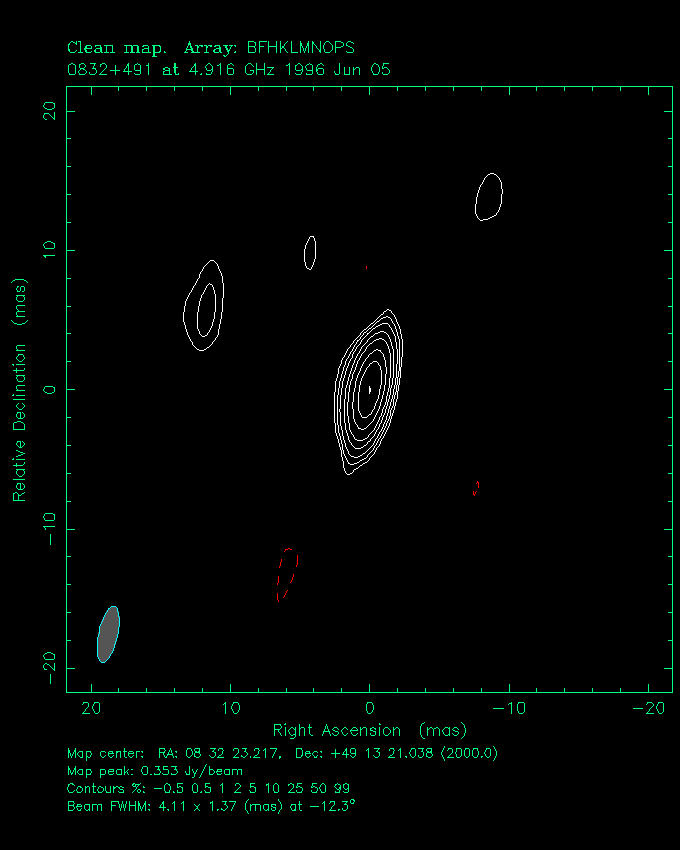

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

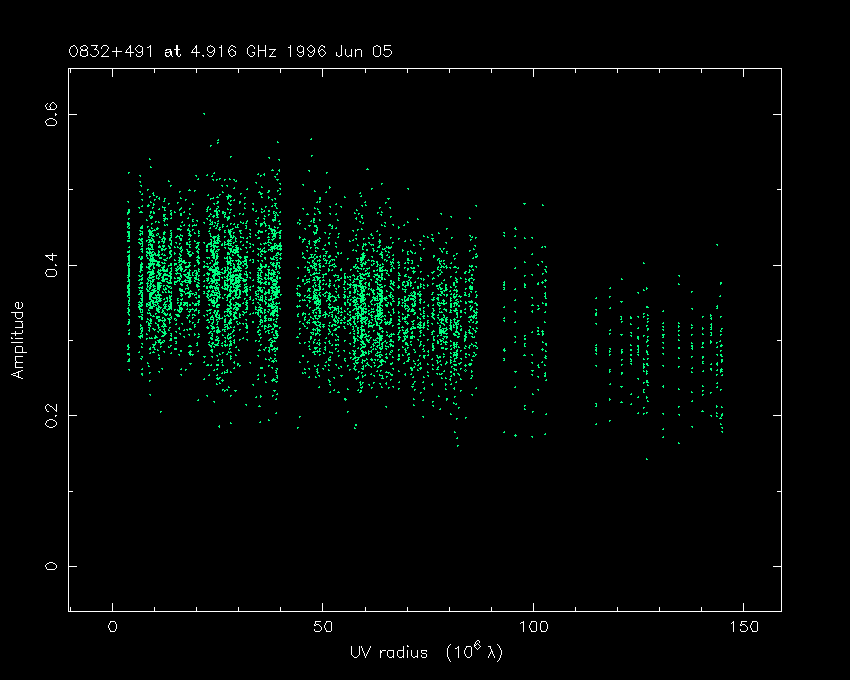

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.314 -0.1 0.0 < 1.2 < 0.5 ...
0.067 0.5 0.2 < 0.7 < 1.4 ...
0.018 11.4 5.4 6.3 2.4 90

Other VLBI references

5 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
1.6 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
