J0748+2400

J0748+2400

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
0745+241 7 h 48 m 36.1092 s + 24 ° 0 ´ 24.110 " 1.2 Jy quasar 0.409

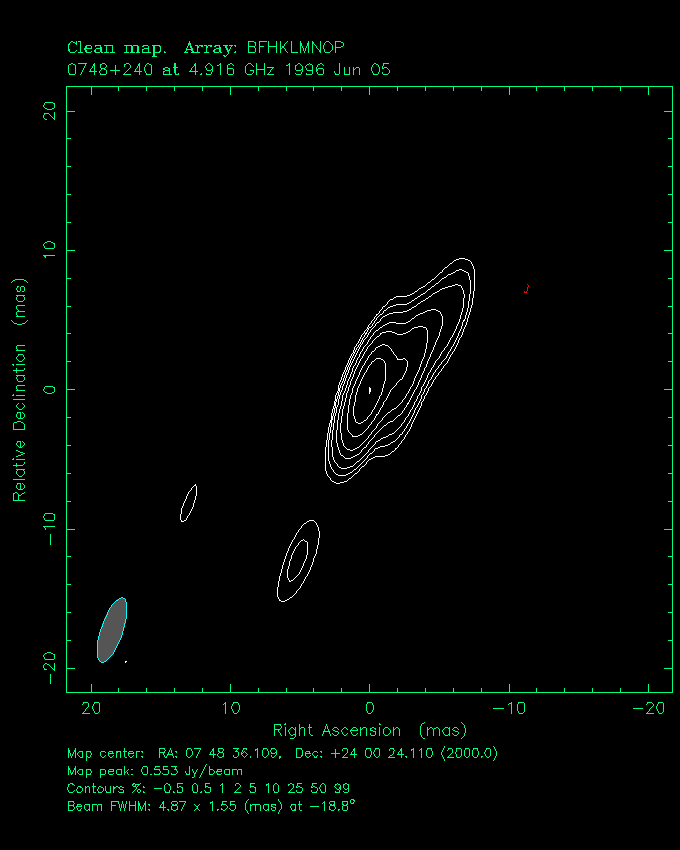

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

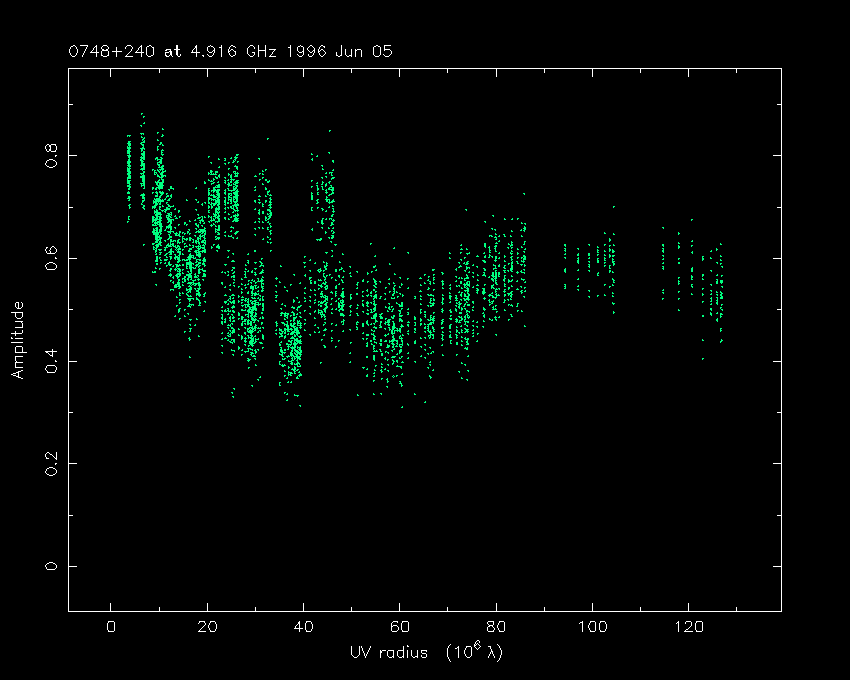

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
0.574 0.0 -0.1 0.9 ± 0.3 < 0.7 129
0.154 -2.5 1.5 1.9 ± 0.9 < 0.5 162
0.044 -5.0 4.7 3.2 2.0 ...

Other VLBI references
