J0745+1011
J0745+1011
| other name | right ascension (J2000)
| declination (J2000) |
5-GHz total flux density |
optical ID | redshift |
| 0742+103 |
7 h 45 m
33.0595
s |
+ 10 ° 11 ´
12.693
" |
3.5 Jy |
empty field |
... |

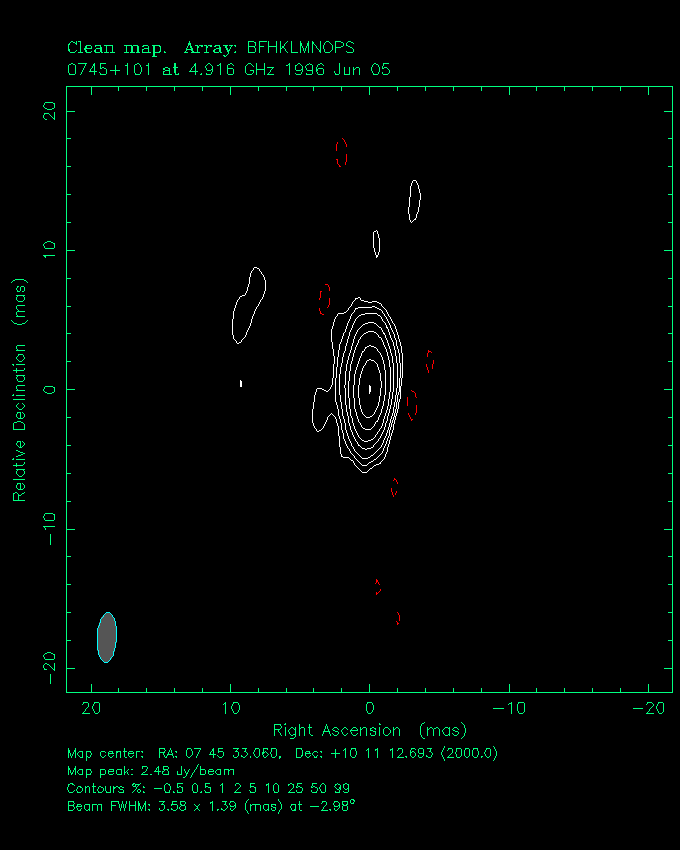

VLBApls image at 5 GHz
color gif
|
contour gif
|
contour PostScript

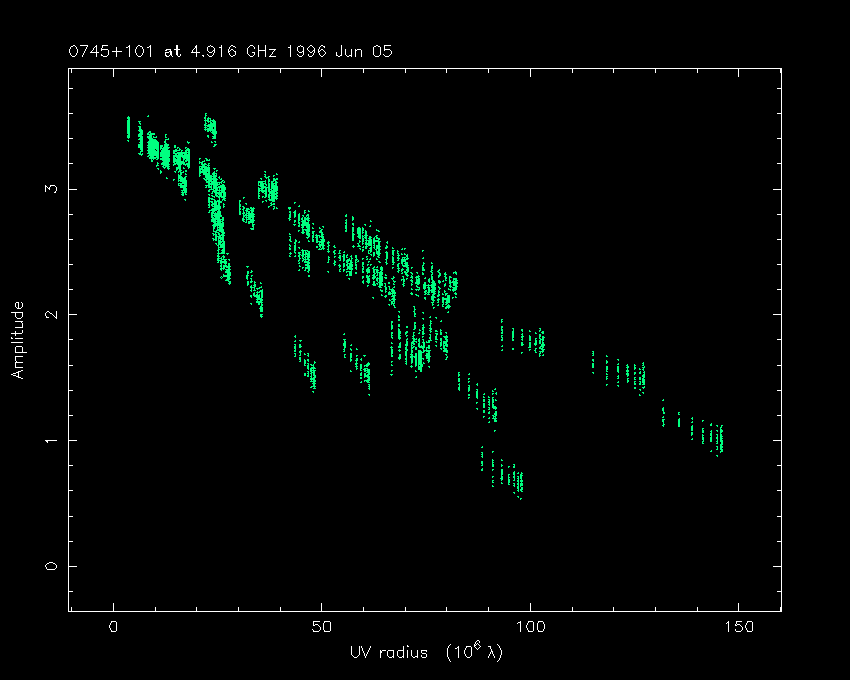

Correlated flux density (Jy) vs. projected baseline length plot
gif |
PostScript
Gaussian source model component parameters
| flux density (Jy) |
EW position (mas) |
NS position (mas) |
major axis (mas) |
minor axis (mas) |
position angle (°) |
| 1.940 |
0.0 |
-0.4 |
1.2
±
0.1
|
0.4
±
0.1
|
156
|
| 1.466 |
0.0 |
1.1 |
2.3
±
0.1
|
1.2
±
0.1
|
7
|
Other VLBI references
- 2.3 and/or 8.4 GHz: multiple epoch VLBI
images are available in the
USNO Radio Reference Frame Image Database
(RRFID, Fey & Charlot 2000, ApJS 128, 17)
- 15 GHz: VLBI
images are available in the
USNO Radio Reference Frame Image Database
(RRFID, Fey & Charlot 2000, ApJS 128, 17)
- 15 GHz: multiple epoch VLBI
images are available in the
VLBA 2-cm survey
(Kellermann et al. 1998, AJ 115, 1295)
VLBApls reference: Fomalont et al. (2000),
ApJS, in press (November 2000)
