J0738+1742

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0735+178 7 h 38 m 7.3937 s + 17 ° 42 ´ 18.999 " 2.2 Jy BL Lac >0.424

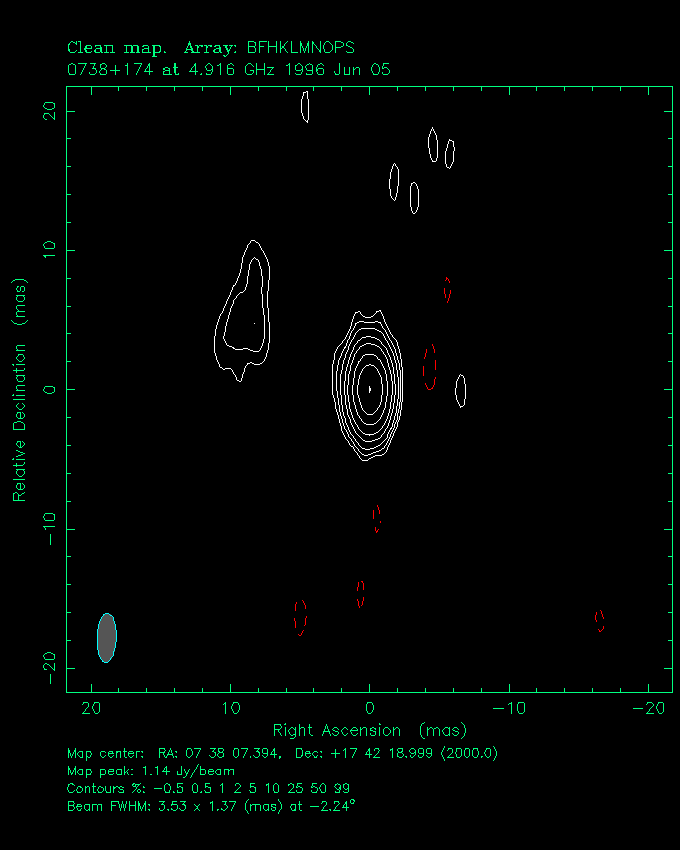

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

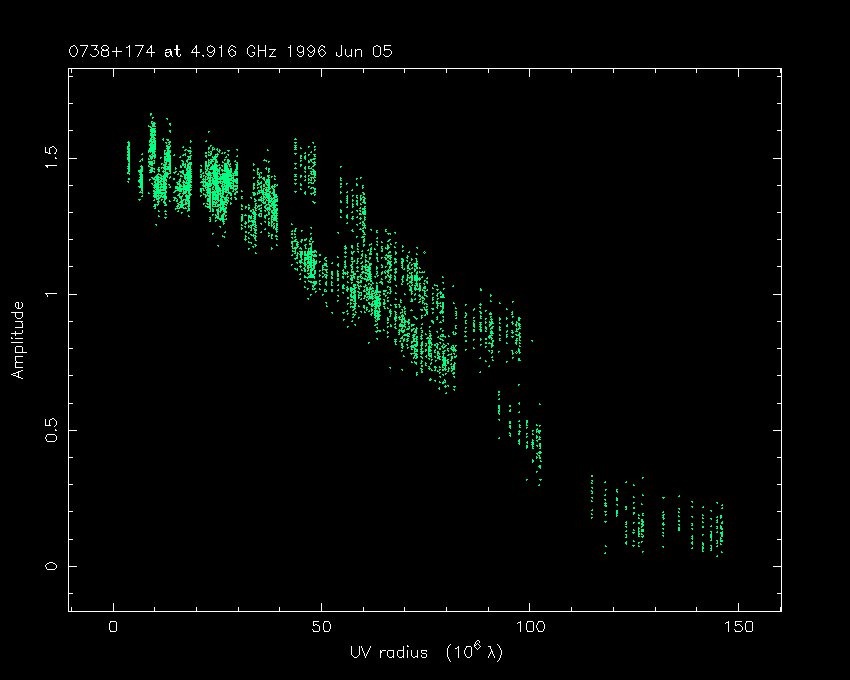

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

1.480 0.0 0.0 1.2 ± 0.1 0.6 ± 0.2 61
0.099 9.0 5.4 < 7.2 < 2.1 61

Other VLBI references

2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
