J0614+6046

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0609+607 6 h 14 m 23.8661 s + 60 ° 46 ´ 21.755 " 1.1 Jy quasar 2.702

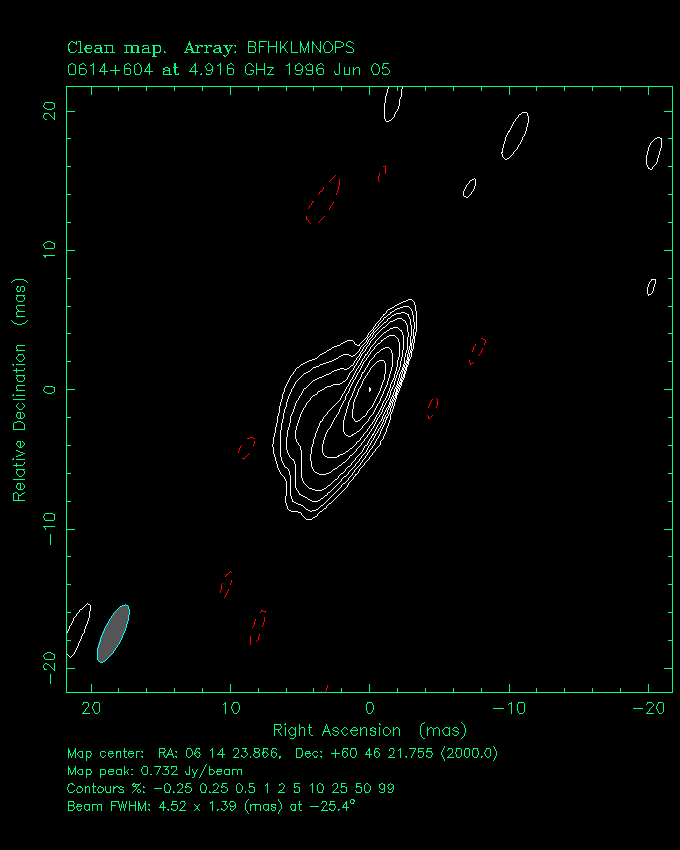

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

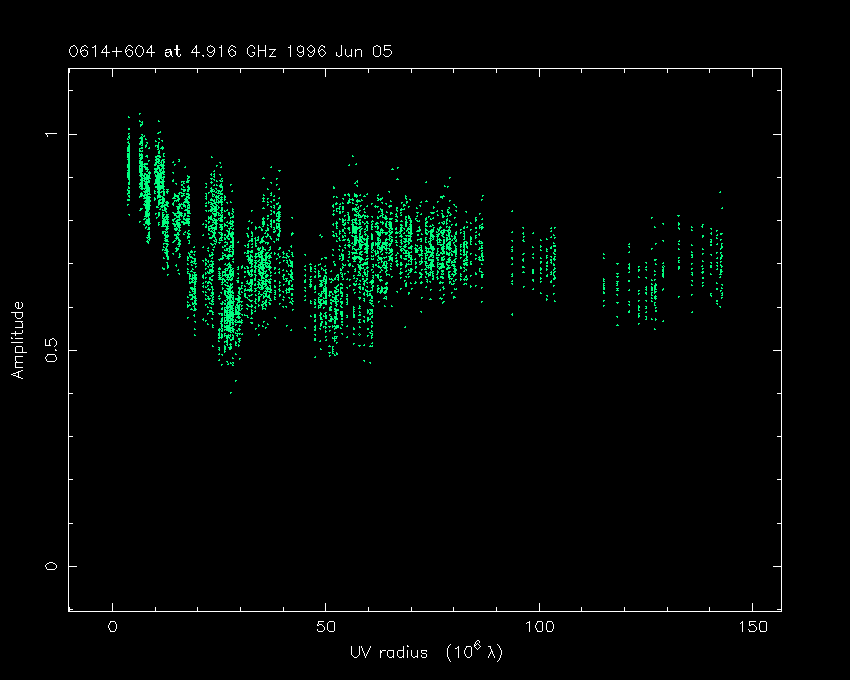

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.746 0.0 0.0 1.1 ± 0.3 < 0.2 166
0.160 2.5 -3.5 2.5 ± 0.5 1.7 ± 0.6 134
0.031 4.2 -1.2 2.4 2.0 ...

Other VLBI references

5 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
