J0522-3627

J0522-3627

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
0521-365 5 h 22 m 57.9846 s -36 ° 27 ´ 30.849 " 9.2 Jy BL Lac 0.055

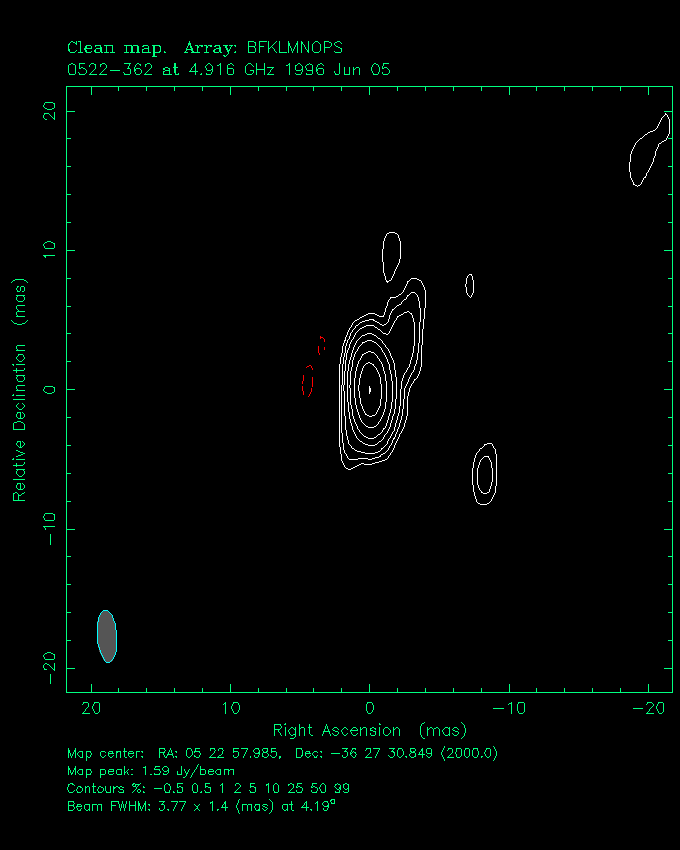

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

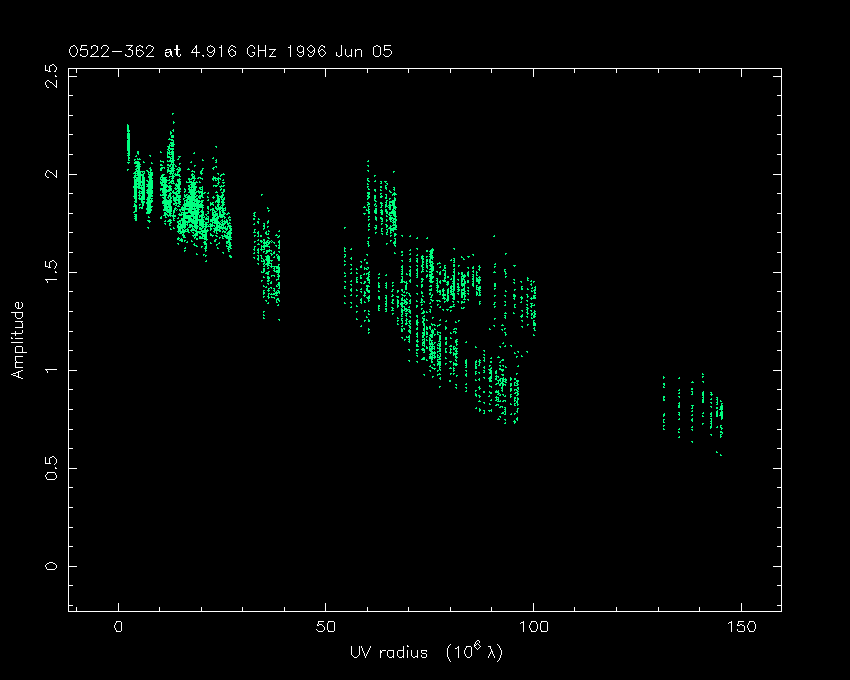

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
1.289 0.1 -0.2 < 0.6 < 0.2 ...
0.596 -0.5 0.4 1.2 ± 0.3 < 0.5 29
0.092 -2.5 3.5 < 0.8 < 0.4 ...
0.111 -7.8 5.7 8.2 ± 0.9 2.6 ± 0.6 122

Other VLBI references
