J0433+0521

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

3C 120 4 h 33 m 11.0955 s + 5 ° 21 ´ 15.620 " 3.8 Jy galaxy 0.033

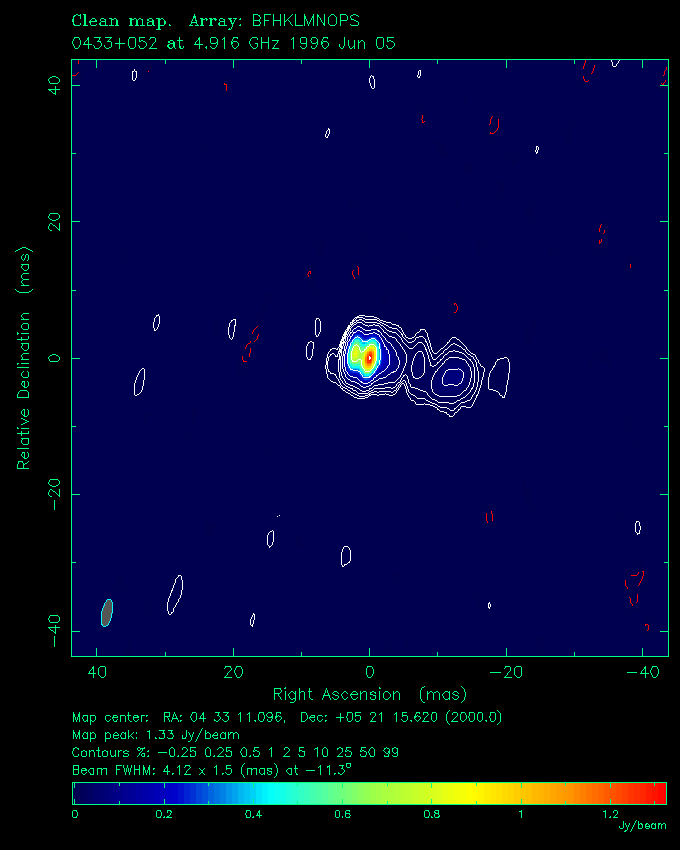

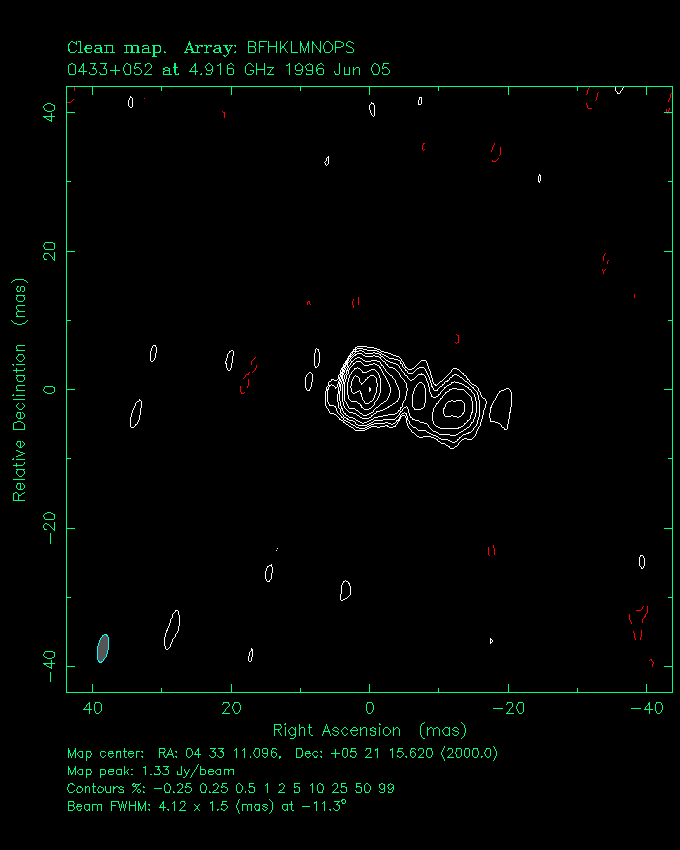

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

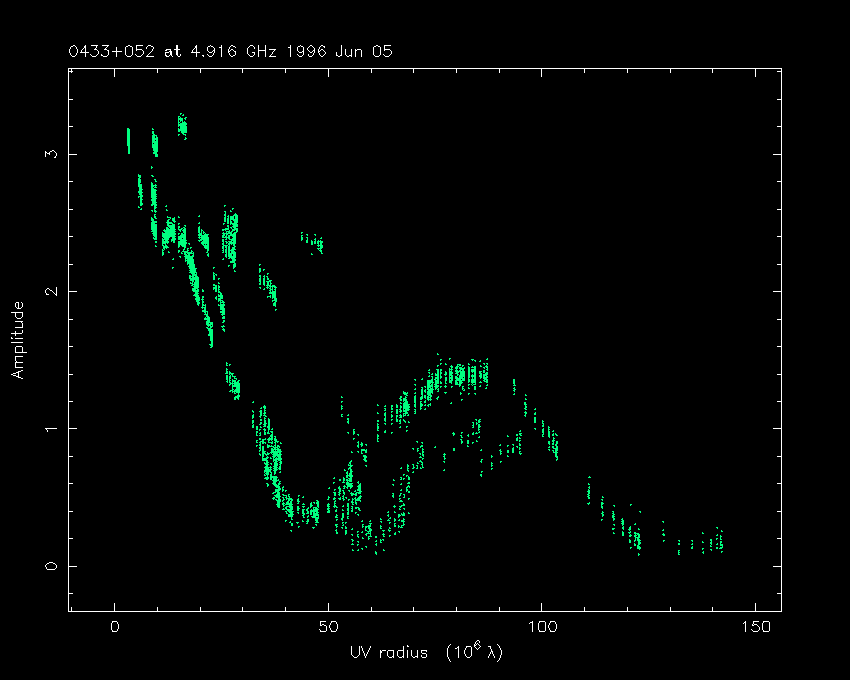

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

1.647 0.0 0.0 1.2 ± 0.1 < 0.4 90
0.219 -2.2 -0.4 1.5 ± 0.3 < 0.7 80
0.963 2.2 0.7 0.9 ± 0.1 < 0.6 68
0.203 -5.4 -0.9 6.5 ± 0.7 3.2 ± 0.7 69
0.253 -12.2 -2.9 3.5 ± 0.5 3.5 ± 0.6 63

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
