J0238+1636

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0235+164 2 h 38 m 38.9301 s + 16 ° 36 ´ 59.275 " 1.9 Jy BL Lac 0.940

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

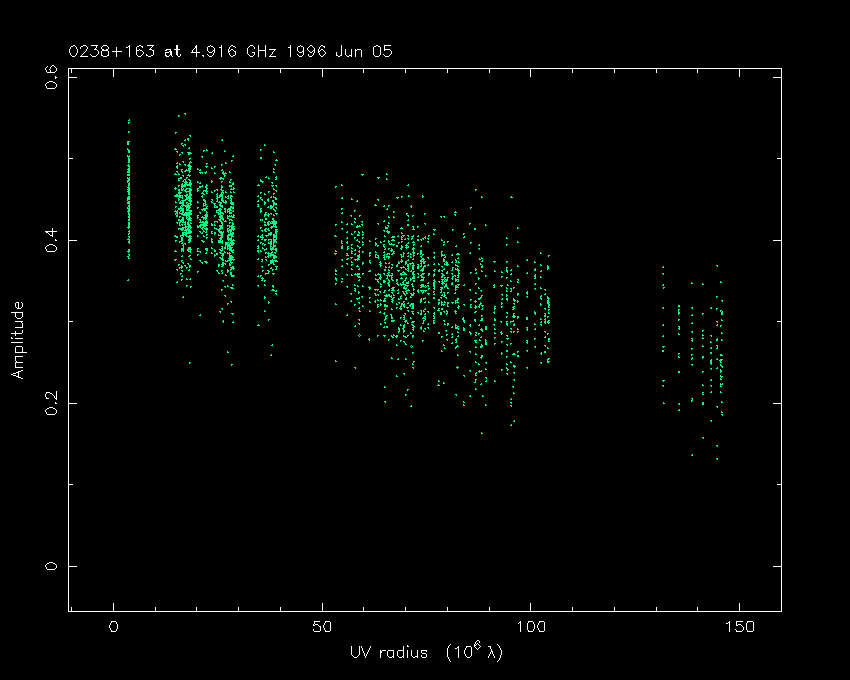

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.433 0.0 0.0 < 0.7 0.6 ± 0.2 170

Notes

A source-specific comment is given in the VLBApls paper.

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS, in press (November 2000)
VLBApls home page
Last modified: 17 Oct 2000
