J0050-0929
J0050-0929
other name | right ascension (J2000)
| declination (J2000) |
5-GHz total flux density |
optical ID | redshift |
0048-097 |
0 h 50 m
41.3173
s |
-9 ° 29 ´
5.209
" |
1.9 Jy |
BL Lac |
... |

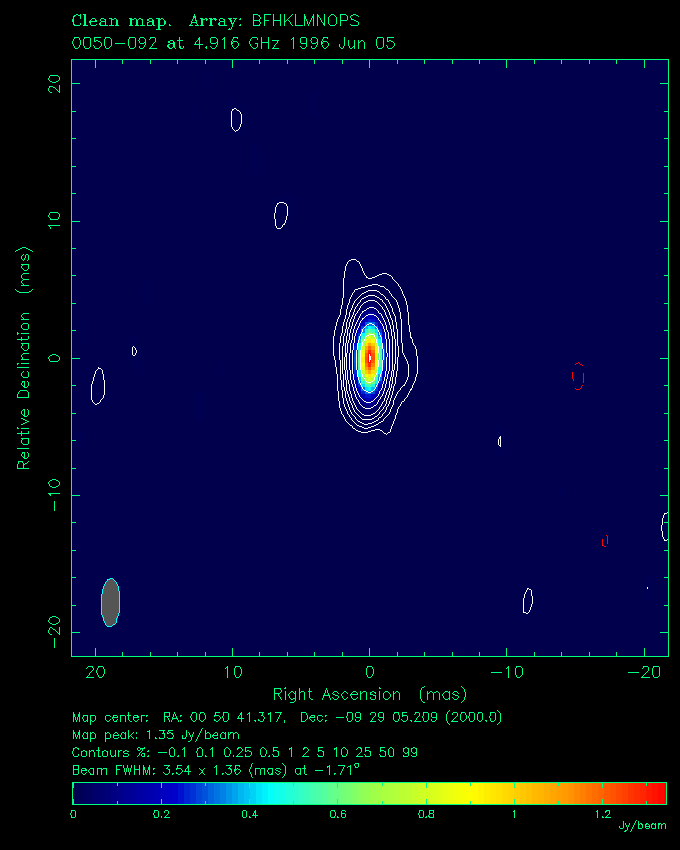

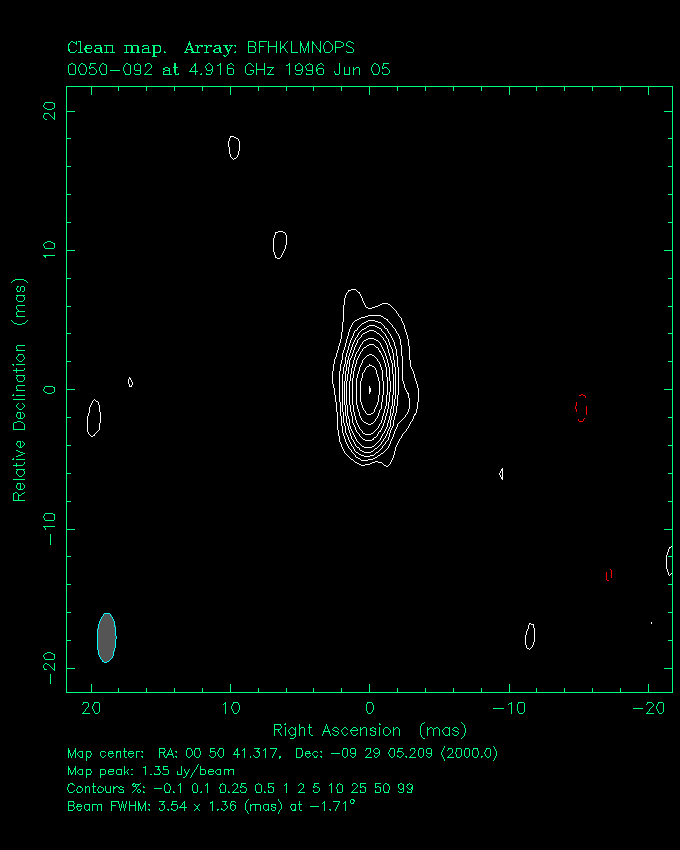

VLBApls image at 5 GHz
color gif
|
contour gif
|
contour PostScript

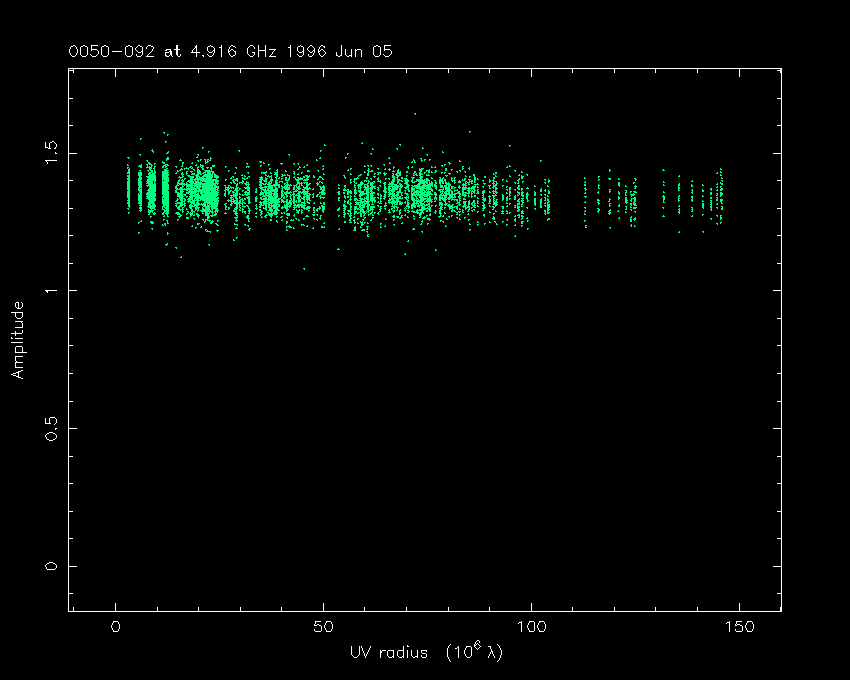

Correlated flux density (Jy) vs. projected baseline length plot
gif |
PostScript
Gaussian source model component parameters
flux density (Jy) |
EW position (mas) |
NS position (mas) |
major axis (mas) |
minor axis (mas) |
position angle (°) |
1.350 |
0.0 |
0.0 |
<
0.6
|
<
0.2
|
...
|
Other VLBI references
- 2.3 and/or 8.4 GHz: multiple epoch VLBI
images are available in the
USNO Radio Reference Frame Image Database
(RRFID, Fey & Charlot 2000, ApJS 128, 17)
- 15 GHz: VLBI
images are available in the
USNO Radio Reference Frame Image Database
(RRFID, Fey & Charlot 2000, ApJS 128, 17)
- 15 GHz: multiple epoch VLBI
images are available in the
VLBA 2-cm survey
(Kellermann et al. 1998, AJ 115, 1295)
VLBApls reference: Fomalont et al. (2000),
ApJS, in press (November 2000)
