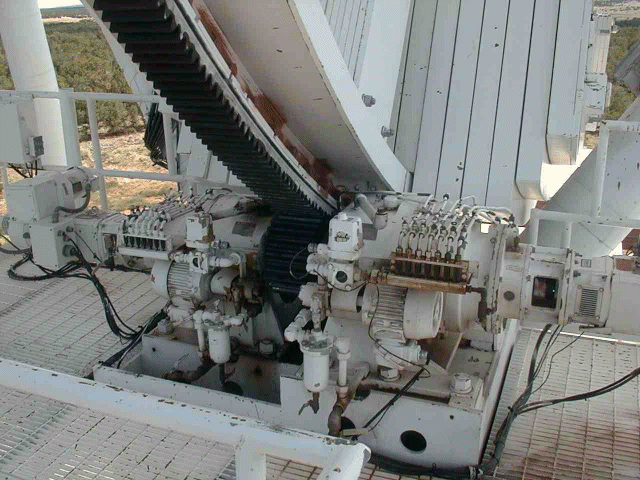

Photograph of the elevation drive motor
This is the mechanism that "tips" the dish to follow the path of the point being observed as it travels across the sky.

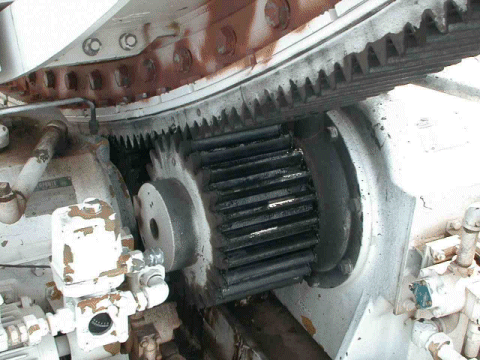

Here is a closer view of the gear itself.

Close-up photo of the gear itself
